7-446-3 FLEXIBLE TUBING 1-2415 ELBOW U3-478/479INTAKE SIDE CARB. HEATER 1-2437 BAFFLE

NAS1149F0332P WASHER AN380-2-2 COTTER

AN520-10-32 SCREW AN315-3 NUT

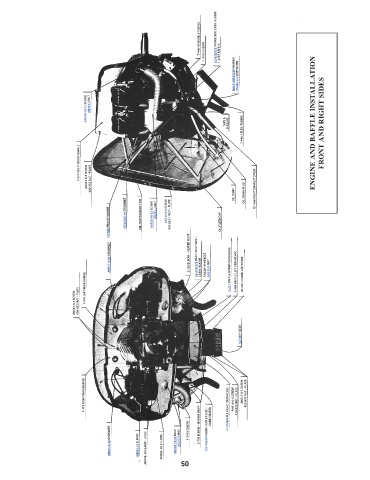

7-446-1 FLEX. TUBING ENGINE AND BAFFLE INSTALLATION FRONT AND RIGHT SIDES
TAPE &
SHELLAC

7-477 RIGHT FRONT BAFFLE AN515-8-5 SCREW 420-832 NUT – PLATE U7-486 RIGHT EXHAUST STACK

U4-585 ENGINE MOUNT MS35489-14 GROMMET OIL TEMPERATURE LINE AN520-10-32 SCREW AN315-3 NUT AN515-8-6 SCREW 420-832-1 NUT – PLATE OIL FILTER CAP OIL SUMP OIL DRAIN PLUG

AN931-8-20 GROMMET 2-738 ELBOW – HEATER MUFF U3-478/479MUFF INLET SIDE – CABIN HEATER AN520-10-44 BOLT AN315-3 NUT 7-471 BAFFLE UPPER CRANKCASE 7-469 BAFFLE LEFT CRANKCASE U4-601 CARB. AIR INTAKE

AN515-8-5 SCREW 420-832 NUT – PLATE 7-476 LEFT REAR BAFFLE

U2-849 FILTER

7-475 RIGHT REAR BAFFLE CARB. HEATER 7-470 BAFFLE RIGHT CRANKCASE AN515-8-5 SCREW 420-832 NUT – PLATE AN515-8-5 SCREW 420-832 NUT – PLATE

AN931-8-20 GROMMET AN842-10 ELBOW AN748-34 CLAMP – HOSE AN884-10-11 HOSE AN520-10-32 BOLT AN315-3 NUT 50 1-2415 ELBOW 2-738 ELBOW – HEATER MUFF U3-478/479MUFF OUTLET SIDE –
