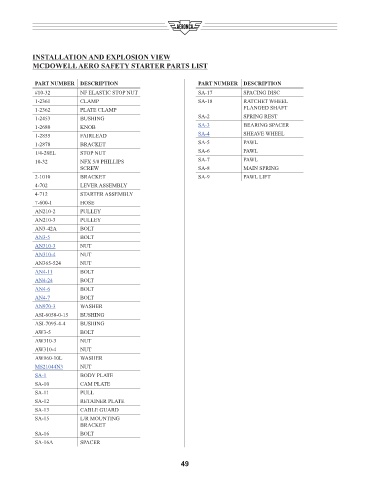

INSTALLATION AND EXPLOSION VIEW
MCDOWELL AERO SAFETY STARTER PARTS LIST

PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION
#10-32 NF ELASTIC STOP NUT SA-17 SPACING DISC
1-2361 CLAMP SA-18 RATCHET WHEEL
1-2362 PLATE CLAMP FLANGED SHAFT
1-2453 BUSHING SA-2 SPRING REST
1-2680 KNOB SA-3 BEARING SPACER
1-2855 FAIRLEAD SA-4 SHEAVE WHEEL
1-2878 BRACKET SA-5 PAWL
1/4-28EL STOP NUT SA-6 PAWL
10-32 NFX 5/8 PHILLIPS SA-7 PAWL
SCREW SA-8 MAIN SPRING
2-1010 BRACKET SA-9 PAWL LIFT
4-702 LEVER ASSEMBLY
4-712 STARTER ASSEMBLY
7-600-1 HOSE
AN210-2 PULLEY
AN210-3 PULLEY
AN3-42A BOLT
AN3-5 BOLT
AN310-3 NUT
AN310-4 NUT
AN365-524 NUT
AN4-11 BOLT
AN4-24 BOLT
AN4-6 BOLT
AN4-7 BOLT
AN970-3 WASHER
ASI-6058-0-15 BUSHING
ASI-7095-4-4 BUSHING
AW3-5 BOLT
AW310-3 NUT
AW310-4 NUT
AW960-10L WASHER
MS21044N3 NUT
SA-1 BODY PLATE
SA-10 CAM PLATE
SA-11 PULL
SA-12 RETAINER PLATE
SA-13 CABLE GUARD
SA-15 L/R MOUNTING
BRACKET
SA-16 BOLT
SA-16A SPACER

49
