1-2190 TRIM TAB 4X1/4 PK SCREW – STOVE HEAD U4-562 TRIM TAB 4-565 ELEVATOR 4-566L STABILIZER AN23-15 BOLT AN310-3 NUT NAS1149F0332P WASHER 1-2576 SPACER U5-180-L AILERON AN24-14 BOLT AN320-4 NUT 4-547L WING LEFT AN6-24 BOLT AN310-6 NUT AN310-5 NUT

AN665-21L TERMINAL 4 REQ. AN665-21R TERMINAL 4 REQ. AN315-3L NUT 4 REQ. AN315-3 4 REQ. MS20392-2C11 PIN 8 REQ. 5-162 FRONT STRUT AN5-15 BOLT

U3-456 COVER AN530-8-8 SCREW MS21044N08 TYPE “U” NUT U1-2460 JURY STRUT AN3-5A BOLT MS21044N3 NUT 5-160 REAR STRUT 1-2461 SPREADER AN42B-17A EYEBOLT

4-564 RUDDER NAS1149F0663P WASHER MS21044N6 NUT 7-607 L/R WHEEL PANTS

U1-2340 TAIL WIRE 4 REQ. AN3-4A BOLT MS21044N3 NUT 1-2459 JURY STRUT U1-2543 CLEVIS AN316-8R NUT AN5-7 BOLT NAS1149F0563P WASHER AN310-5 NUT 1-2869 DOOR STOP AN6-16 BOLT AN310-6 NUT NAS1149F0663P WASHER

4-563R ELEVATOR 2-1001 RETAINER

2-1000 RETAINER 7-518 COWLING

4-566R STABILIZER AN310-3 NUT AN3-15 BOLT U1-2357 LUG 1-1037 VENT 4-593 FIREWALL NAS1149F0663P WASHER AN310-6 NUT AN6-25 BOLT AN526-1032-9 SCREW 2-868 BRACKET 1-2701 SUPPORT

3-494 L/R COVER BOTTOM REAR 3-493 L/R COVER TOP REAR 3-492 COVER TOP 3-495 COVER BOTTOM 4-706 L/R COVER FRONT 2-862 WINTER COVER 4-701 L/R CASE FRAME FAIRING

7-521 WINDSHIELD 5-250 L/R RETAINER U7-473 TOP COWLING U7-472 BOTTOM COWLING

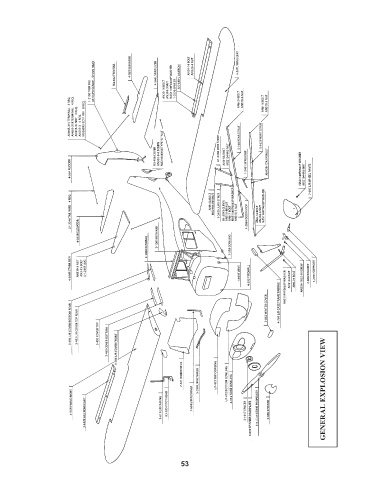

4-547R WING RIGHT 3-447R AILERON RIGHT 3-611 L/R FAIRING U3-535 PITOT HEAD 7-604 L/R RETAINER 4-612 NOSE COWLING 2-1017 SPACER 3-609 SPINNER BACKPLATE L11-C-43 LEWIS PROPELLER 3-608 SPINNER GENERAL EXPLOSION VIEW
