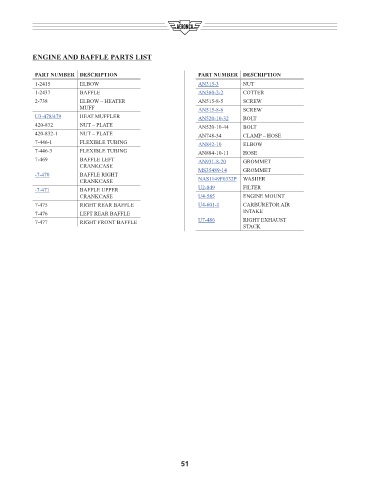

ENGINE AND BAFFLE PARTS LIST
PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION
1-2415 ELBOW AN315-3 NUT
1-2437 BAFFLE AN380-2-2 COTTER
2-738 ELBOW – HEATER AN515-8-5 SCREW
MUFF AN515-8-6 SCREW
U3-478/479 HEAT MUFFLER AN520-10-32 BOLT
420-832 NUT – PLATE AN520-10-44 BOLT
420-832-1 NUT – PLATE AN748-34 CLAMP – HOSE
7-446-1 FLEXIBLE TUBING AN842-10 ELBOW
7-446-3 FLEXIBLE TUBING AN884-10-11 HOSE
7-469 BAFFLE LEFT AN931-8-20 GROMMET
CRANKCASE
-7-470 BAFFLE RIGHT MS35489-14 GROMMET
CRANKCASE NAS1149F0332P WASHER
-7-471 BAFFLE UPPER U2-849 FILTER
CRANKCASE U4-585 ENGINE MOUNT
7-475 RIGHT REAR BAFFLE U4-601-1 CARBURETOR AIR
7-476 LEFT REAR BAFFLE INTAKE
7-477 RIGHT FRONT BAFFLE U7-486 RIGHT EXHAUST
STACK
51
