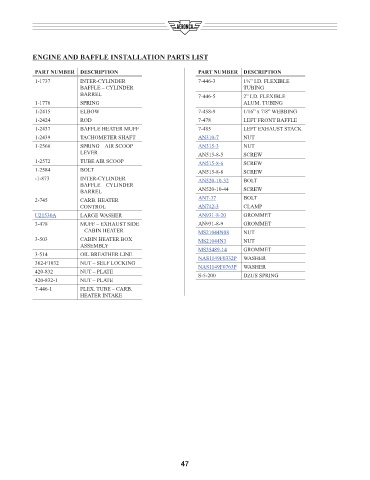

ENGINE AND BAFFLE INSTALLATION PARTS LIST

PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION
1-1737 INTER-CYLINDER 7-446-3 1½” I.D. FLEXIBLE
BAFFLE – CYLINDER TUBING
BARREL 7-446-5 2” I.D. FLEXIBLE
1-1776 SPRING ALUM. TUBING
1-2415 ELBOW 7-458-9 1/16” x 7/8” WEBBING
1-2424 ROD 7-478 LEFT FRONT BAFFLE
1-2437 BAFFLE HEATER MUFF 7-485 LEFT EXHAUST STACK
1-2439 TACHOMETER SHAFT AN310-7 NUT
1-2566 SPRING – AIR SCOOP AN315-3 NUT
LEVER AN515-8-5 SCREW
1-2572 TUBE AIR SCOOP AN515-8-6 SCREW
1-2584 BOLT AN515-8-8 SCREW
-1-873 INTER-CYLINDER AN520-10-32 BOLT
BAFFLE – CYLINDER
BARREL AN520-10-44 SCREW
2-745 CARB. HEATER AN7-37 BOLT
CONTROL AN742-3 CLAMP
U21530A LARGE WASHER AN931-8-20 GROMMET
3-478 MUFF – EXHAUST SIDE AN931-8-9 GROMMET
– CABIN HEATER MS21044N08 NUT
3-503 CABIN HEATER BOX MS21044N3 NUT
ASSEMBLY MS35489-14 GROMMET
3-514 OIL BREATHER LINE NAS1149F0332P WASHER
362-F1032 NUT – SELF LOCKING NAS1149F0763P WASHER
420-832 NUT – PLATE S-5-200 DZUS SPRING
420-832-1 NUT – PLATE
7-446-1 FLEX. TUBE – CARB.
HEATER INTAKE
