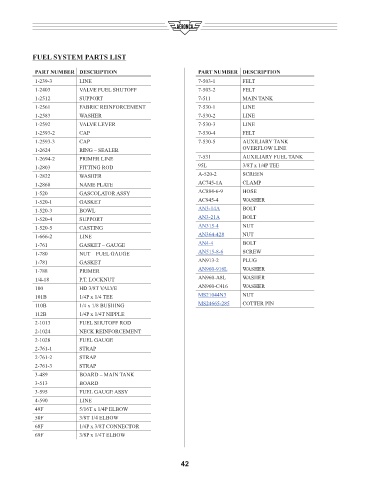

FUEL SYSTEM PARTS LIST

PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION
1-239-3 LINE 7-503-1 FELT
1-2403 VALVE FUEL SHUTOFF 7-503-2 FELT
1-2512 SUPPORT 7-511 MAIN TANK
1-2561 FABRIC REINFORCEMENT 7-530-1 LINE
1-2583 WASHER 7-530-2 LINE
1-2592 VALVE LEVER 7-530-3 LINE
1-2593-2 CAP 7-530-4 FELT
1-2593-3 CAP 7-530-5 AUXILIARY TANK
1-2624 RING – SEALER OVERFLOW LINE
1-2694-2 PRIMER LINE 7-531 AUXILIARY FUEL TANK
1-2803 FITTING ROD 95L 3/8T x 1/4P TEE
1-2822 WASHER A-520-2 SCREEN
1-2868 NAME PLATE AC745-1A CLAMP
1-520 GASCOLATOR ASSY AC884-6-9 HOSE
1-520-1 GASKET AC945-4 WASHER
1-520-3 BOWL AN3-14A BOLT
1-520-4 SUPPORT AN3-21A BOLT
1-520-5 CASTING AN315-4 NUT
1-666-2 LINE AN364-428 NUT
1-761 GASKET – GAUGE AN4-4 BOLT
1-780 NUT – FUEL GAUGE AN515-8-6 SCREW
1-781 GASKET AN913-2 PLUG
1-788 PRIMER AN960-916L WASHER
1/4-18 P.T. LOCKNUT AN960-A8L WASHER
100 HD 3/8T VALVE AN960-C416 WASHER
101B 1/4P x 1/4 TEE MS21044N3 NUT
110B 1/4 x 1/8 BUSHING MS24665-285 COTTER PIN
112B 1/4P x 1/4T NIPPLE
2-1013 FUEL SHUTOFF ROD
2-1024 NECK REINFORCEMENT
2-1028 FUEL GAUGE
2-761-1 STRAP
2-761-2 STRAP
2-761-3 STRAP
3-489 BOARD – MAIN TANK
3-513 BOARD
3-595 FUEL GAUGE ASSY
4-590 LINE
49F 5/16T x 1/4P ELBOW
50F 3/8T 1/4 ELBOW
68F 1/4P x 3/8T CONNECTOR
69F 3/8P x 1/4T ELBOW

42
