362-F1032 NUT SELF LOCKING 3-514 OIL BREATHER LINE 7-485 LEFT EXHAUST STACK

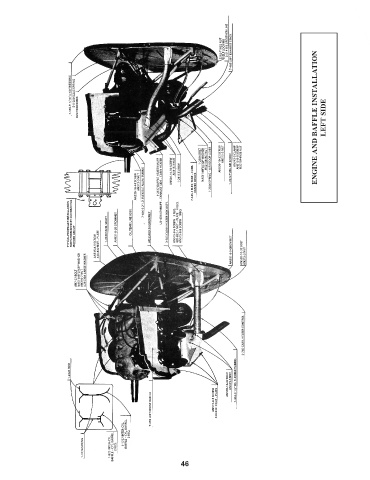

7-458-9 1/16” x 7/8” WEBBING S-5-200 DZUS SPRING IGNITION WIRES ENGINE AND BAFFLE INSTALLATION LEFT SIDE

1-2584 BOLT NAS1149F0332P WASHER MS21044N3 NUT 1-2566 SPRING – AIR SCOOP LEVER AN520-10-32 SCREW AN315-3 NUT 1-2572 TUBE AIR SCOOP AN742-3 CLAMP AN515-8-8 SCREW MS21044N08 NUT
AN315-3 NUT
AN520-10-32 SCREW

AN520-10-44 SCREW AN315-3 NUT 7-446-5 2” I.D. FLEXIBLE ALUM. TUBING 1-2437 BAFFLE HEATER MUFF U3-478/479MUFF – EXHAUST SIDE – CABIN HEATER 1-2415 ELBOW 7-446-1 FLEX. TUBE – CARB. HEATER INTAKE

TYPICAL PROPELLER INSTALLATION PARTS FURNISHED BY CONTINENTAL MOTORS GROUP AN515-8-5 SCREW 420-832 NUT – PLATE 1-2439 TACH. SHAFT AN931-8-20 GROMMET OIL TEMP. LINE ASSY. MS35489-14 GROMMET 3-503 CABIN HEATER BOX ASSY. AN515-8-6 SCREW 3 REQ. 420-832-1 NUT – PLATE 4 REQ. AN515-8-8 SCREW 1REQ. AN931-8-9 GROMMET

AN7-37 BOLT NAS1149F0763P WASHER AN310-7 NUT U21530A LARGE WASHER AN520-10-32 BOLT AN315-3 NUT

2-745 CARB. HEATER CONTROL

1-2424 ROD AN520-10-32 BOLT AN315-3 NUT 7-446-3 1½” I.D. FLEXIBLE TUBING

7-478 LEFT FRONT BAFFLE AN515-8-5 SCREW 420-832-1 NUT – PLATE

1-1776 SPRING 1-873 INTER-CYL. BAFFLE – CYL. BARREL 2 REQ. 1-1737 INTER-CYL. BAFFLE – CYL. BARREL 2 REQ.

46
46
