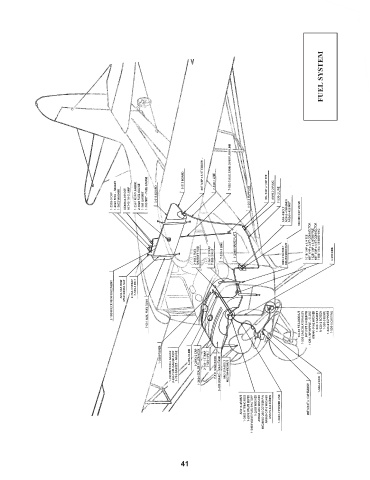

FUEL SYSTEM
1-2593-3 CAP 1-2624 RING – SEALER 1-2822 WASHER AC884-6-9 HOSE AC745-1A CLAMP 1-2561 REIN’F. FABRIC 2-1028 FUEL GAUGE 1-781 GASKET 1-780 NUT – FUEL GAUGE 3-513 BOARD 3-513 BOARD 69F 3/8P x 1/4T ELBOW 7-530-1 LINE 7-530-5 AUX. TANK OVERFLOW LINE 1-2512 SUPPORT 95L 3/8T x 1/4P TEE AN913-2 PLUG 7-530-2 LINE
AN4-4 BOLT AC945-4 WASHER AN364-428 NUT 100 HD 3/8T VALVE
2-1013 FUEL SHUTOFF ROD 2-761-2 STRAP 7-503-2 FELT 7-530-3 LINE 1-2868 NAME PLATE AN3-21A BOLT MS21044N3 NUT 101B 1/4P x 1/4 TEE 68F 1/4P x 3/8T CONNECTOR 112B 1/4P x 1/4T NIPPLE 68F 1/8P x 1/8T CONNECTOR 110B 1/4 x 1/8 BUSHING 4-590 LINE
2-1024 NECK REINFORCEMENT AN3-14A BOLT MS21044N3 NUT 2-761-3 STRAP 7-530-4 FELT 7-531 AUX. FUEL TANK 1/4-18 P.T. LOCKNUT 50F 3/8T 1/4 ELBOW AN960-916L WASHER 1-520-1 GASKET A-520-2 SCREEN 1-520-3 BOWL 1-520-4 SUPPORT 1-520-5 CASTING
1-788 PRIMER 1-239-3 LINE 1-2593-2 CAP 2-761-1 STRAP 7-503-1 FELT 1-520 GASCOLATOR ASSY 112B 1/4P NIPPLE – CLOSE
1-780 NUT FUEL GAUGE 3-595 FUEL GAUGE ASSY 1-761 GASKET – GAUGE 1-2624 SEALER FILLER NECK 7-511 MAIN TANK 3-489 BOARD – MAIN TANK AN3-21A BOLT MS21044N3 NUT 1-666-2 LINE
AN315-4R NUT 1-2803 FITTING ROD 1-2592 VALVE LEVER 1-2403 VALVE FUEL SHUTOFF 1-2583 WASHER AN960-A8L WASHER MS24665-285 COTTER PIN AN960-C416 WASHER AN515-8-6 SCREW 1-2694-2 PRIMER LINE 49F 5/16T x 1/4P ELBOW
