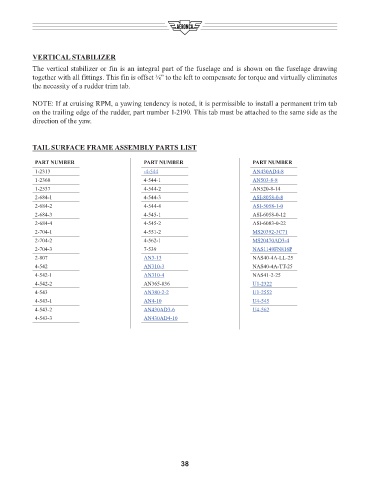

VERTICAL STABILIZER
The vertical stabilizer or fin is an integral part of the fuselage and is shown on the fuselage drawing
together with all fittings. This fin is offset ⅜” to the left to compensate for torque and virtually eliminates
the necessity of a rudder trim tab.

NOTE: If at cruising RPM, a yawing tendency is noted, it is permissible to install a permanent trim tab
on the trailing edge of the rudder, part number 1-2190. This tab must be attached to the same side as the
direction of the yaw.

TAIL SURFACE FRAME ASSEMBLY PARTS LIST

PART NUMBER PART NUMBER PART NUMBER
1-2313 -4-544 AN430AD4-8
1-2360 4-544-1 AN503-8-8
1-2537 4-544-2 AN520-8-14
2-684-1 4-544-3 ASI-8058-0-8
2-684-2 4-544-4 ASI-5058-1-0
2-684-3 4-545-1 ASI-6058-0-12
2-684-4 4-545-2 ASI-6083-0-22
2-704-1 4-551-2 MS20392-3C71
2-704-2 4-562-1 MS20470AD3-4
2-704-3 7-539 NAS1149FN816P
2-807 AN3-13 NAS40-4A-LL-25
4-542 AN310-3 NAS40-4A-TT-25
4-542-1 AN310-4 NAS41-2-25
4-542-2 AN365-836 U1-2322
4-543 AN380-2-2 U1-2552
4-543-1 AN4-10 U4-545
4-543-2 AN430AD3-6 U4-562
4-543-3 AN430AD4-10

38
