U3-428 SPRING ASSY.  AN7-12 BOLT  AN310-7 NUT  2077 BRACKET ASSY.  3001 FORK  1865 HUB &  BEARING ASSY.  1871 WHEEL ASSY.







                                               2622 RUDDER ARM  AN3-13A BOLT  MS21044N3 NUT  AN364-720 NUT  2346 WASHER  U2085A SHIM  U1800A BUSH’G  1871 CAP – BUSH’G





                            U1-557-1 PAD  AN4-16 BOLT  U1-555 FITTING  U1-557-2 PAD  AN310-4 NUT  RUDDER  1879 TIRE

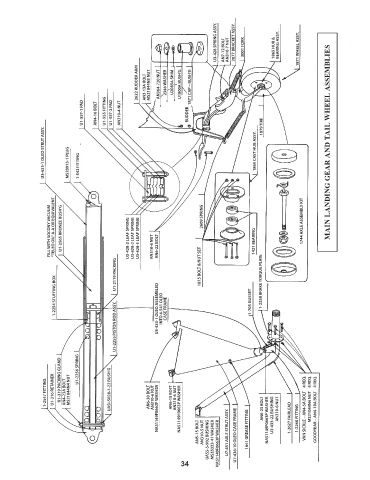

                U3-433-1 OLEO STRUT ASSY.  MS20913-1 PLUG  1-542 FITTING              1865 CAST HUB ASSY.     MAIN LANDING GEAR AND TAIL WHEEL ASSEMBLIES














                  FILL WITH SOCONY VACUUM  “TELEO OIL” A-A OR EQUIVALENT  U1-2565 BRONZE BUSH’G  U3-428-3 LEAF SPRING  U3-428-2 LEAF SPRING  U3-428-1 LEAF SPRING  AN310-6 NUT  AN6-22 BOLT  2609 SPRING  1421 BEARING  1744 AXLE ASSEMBLY KIT









                                       U1-2119 PACKING             1875 BOLT & NUT SET  1-2258 BRAKE TORQUE PLATE


                   1-2254 STUFFING BOX               U3-433-1 OLEO ASSEMBLED  INTO 4-541 OLEO  CASE FRAME  1-705 GUSSET



                                       U1-2255 PISTON ROD ASSY.














                1-2547 FITTING  U1-316 RETAINER  U1-319 PACKING GLAND  AN4-23A BOLT  MS21044N4 NUT  U1-2256 SPRING  UASI-5028-1-22 BUSH’G  AN6-30 BOLT  AN310-6 NUT NAS1149F0663P WASHER  AN6-15 BOLT  AN310-6 NUT NAS1149F0663P WASHER  AN6-23 BOLT  NAS1149F0663P WASHER  U3-433-22 BUSHING  AN310-6 NUT  1-2627 FAIRLEAD  1-2260 FITTING VAN SICKLE – AN4-5A BOLT    4 REQ. MS21044N4 NUT    4 REQ. GOODYEAR – AN4-10A BOLT    4 REQ.















                                                             34
                                                             34    AN5-15 BOLT  AN310-5 NUT  UAS5-5-902 BUSHING  MS35333-41 WASHER NAS1149F0663P WASHER  U7-451 AXLE STRUT ASSY.  U7-436-10 OLEO CASE FRAME  1641 GREASE FITTING
