Page 33 - Aeronca 11AC Interactive Service Manual
P. 33

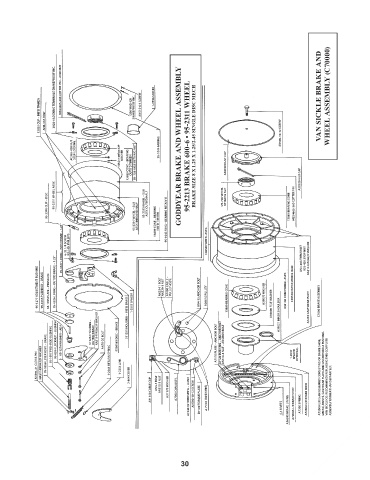

3028-6 LOCKING TERMINALS SHAKEPROOF INC. MS24665-360 COTTER PIN – AXLE NUT  AN515-6-4 SCREW  1-2556 SPACER  VAN SICKLE BRAKE AND  WHEEL ASSEMBLY (C70000)




              13830 CUP – INB’D TIMKEN  AN4-47A BOLT  1206 WASHER  SHAKEPROOF INC.            AN500-10-12 SCREW







                         AC365-428 NUT  SELF LOCKING  NAS1149F0432P  WASHER  13889 CONE – BEARING  OUTB’D TIMKEN  U1-706 AXLE RETAIN’G NUT  95-1044 FAIRING GODDYEAR BRAKE AND WHEEL ASSEMBLY 95-2213 BRAKE 600-6 • 95-2311 WHEEL BRAKE SIZE 8 X 1.25 X 1.25/2.45 SINGLE DISC MECH  A38550 DUST CAP









                 95-3348 CLIP – DISC  95-2311 WHEEL ASSY.  95-2391 WHEEL – SUB  ASSY. INBOARD HALF  95-2313 WHEEL – SUB  ASSY. OUTB’D HALF  13889 CONE – BEARING  INB’D TIMKEN  95-1043 RING – BEARING RETAIN’G  U1-706 WHEEL  RETAIN’G NUT  13889 BEARING CONE  MS24665-360 COTTER PIN  A38520 HUB CAP




                      95-4527 LINING – INB’D BRAKE – 1.25”  6-32 1/4 SCREW  RD. HD. PHILLIPS  C38500 WHEEL ASSY.  AN4-36A THRU BOLT  R2S-428 STOP NUT NAS1149F0463P WASHER







              95-1277 ADJUSTMENT BUSHING  95-1056 PUSHROD – BRAKE  95-1055 PLATE – PRESSURE 95-4526 LINING – OUTB’D BRAKE – 1.25”  511251 HOUSING – INB’D BRAKE  1-2557 SPACER  AN23-11 BOLT  AN320-3 NUT  A7400 CABLE –   PULLEY ASSY.  AN4-15 ANCHOR BOLT  A30510 PULLEY  13889 BEARING CONE  A39070 WASHER  A39090 FELT WASHER  A39021 INNER SHOULDER  B38100 INNER WHEEL ASSY.  C38510 OUTER WHEEL HALF  A7210 CAM WEAR PLATE  C7000 BRAKE ASSEMBLY















             AN394-21 CLEVIS PIN  NAS1149F0432P WASHER 95-1058 LEVER ASSY. – BRAKE  95-1057 PUSHROD BUSHING  95-0914 LOCKNUT – BUSHING  95-1279 WASHER – ADJ  511252 HOUSING –  OUTB’D BRAKE NAS1149F0663P WASHER  AN76-20 BOLT  1-2261 RETURN SPRING  9530183 DISC – BRAKE  1-2354 LINK  2-864 COVER  A7110 PLATE – ANCHOR BOLT A7120 BUSHING – ANCHOR BOLT AN310-4 NUT – ANCHOR BOLT  1-2637  SPACER  OPTIONAL  A7200A L/R IS AN ASSEMBLY CONSISTING OF BRAKE SHOE,  LINING, RIVETS, CAM WEAR PLATE AN




                                                   A31140 CABLE CLIP  AN3-5 BOLT  AN310-3 NUT  A31170 WASHER  A7300 CAM ASSY.  A7340 RETURN SPR’G – LEVER  AN500-10-12 SCREW  B7100 TORQUE PLATE  4-4 RIVETS  A36590 BRAKE LINING  A7200A L/R BRAKE SHOE  A7200 SPRING  A7200A L/R BRAKE SHOE  ASSEMBLY RATHER THAN SEPARATELY.
