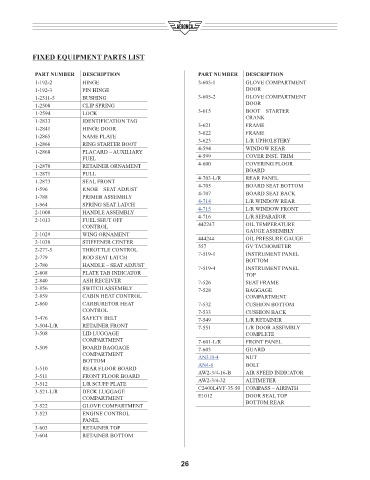

FIXED EQUIPMENT PARTS LIST

PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION
1-192-2 HINGE 3-605-1 GLOVE COMPARTMENT
1-192-3 PIN HINGE DOOR
1-2311-5 BUSHING 3-605-2 GLOVE COMPARTMENT
1-2508 CLIP SPRING DOOR
1-2594 LOCK 3-615 BOOT – STARTER
1-2833 IDENTIFICATION TAG CRANK
1-2841 HINGE DOOR 3-621 FRAME
1-2865 NAME PLATE 3-622 FRAME
1-2866 RING STARTER BOOT 3-623 L/R UPHOLSTERY
1-2868 PLACARD – AUXILIARY 4-594 WINDOW REAR
FUEL 4-599 COVER INST. TRIM
1-2870 RETAINER ORNAMENT 4-600 COVERING FLOOR
1-2871 PULL BOARD
1-2873 SEAL FRONT 4-703-L/R REAR PANEL
BOARD SEAT BOTTOM
4-705
1-596 KNOB – SEAT ADJUST
1-788 PRIMER ASSEMBLY 4-707 BOARD SEAT BACK
1-964 SPRING SEAT LATCH 4-714 L/R WINDOW REAR
2-1008 HANDLE ASSEMBLY 4-715 L/R WINDOW FRONT
2-1013 FUEL SHUT OFF 4-716 L/R SEPARATOR
CONTROL 442247 OIL TEMPERATURE
2-1029 WING ORNAMENT GAUGE ASSEMBLY
2-1030 STIFFENER CENTER 444244 OIL PRESSURE GAUGE
2-277-5 THROTTLE CONTROL 557 GV TACHOMETER
2-779 ROD SEAT LATCH 7-519-1 INSTRUMENT PANEL
BOTTOM
2-780 HANDLE – SEAT ADJUST 7-519-4 INSTRUMENT PANEL
2-808 PLATE TAB INDICATOR TOP
2-840 ASH RECEIVER 7-526 SEAT FRAME
2-856 SWITCH ASSEMBLY 7-528 BAGGAGE
2-859 CABIN HEAT CONTROL COMPARTMENT
2-860 CARBURETOR HEAT 7-532 CUSHION BOTTOM
CONTROL 7-533 CUSHION BACK
3-476 SAFETY BELT 7-549 L/R RETAINER
3-504-L/R RETAINER FRONT 7-551 L/R DOOR ASSEMBLY
3-508 LID LUGGAGE COMPLETE
COMPARTMENT 7-601-L/R FRONT PANEL
3-509 BOARD BAGGAGE 7-603 GUARD
COMPARTMENT AN310-4 NUT
BOTTOM
3-510 REAR FLOOR BOARD AN4-6 BOLT
3-511 FRONT FLOOR BOARD AW2-3/4-16-B AIR SPEED INDICATOR
3-512 L/R SCUFF PLATE AW2-3/4-32 ALTIMETER
3-521-L/R DECK LUGGAGE C2400L4VF-35-50 COMPASS – AIRPATH
COMPARTMENT E1012 DOOR SEAL TOP
3-522 GLOVE COMPARTMENT BOTTOM REAR
3-523 ENGINE CONTROL
PANEL
3-603 RETAINER TOP
3-604 RETAINER BOTTOM
