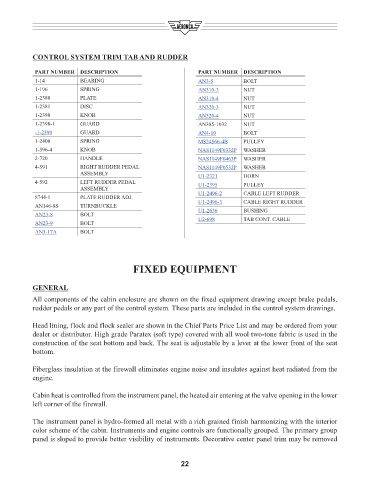

Page 25 - Aeronca 11AC Interactive Service Manual

CONTROL SYSTEM TRIM TAB AND RUDDER

PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION
1-14 BEARING AN3-5 BOLT
1-196 SPRING AN310-3 NUT
1-2380 PLATE AN310-4 NUT
1-2381 DISC AN320-3 NUT
1-2390 KNOB AN320-4 NUT
1-2398-1 GUARD AN385-1032 NUT
-1-2399 GUARD AN4-10 BOLT
1-2400 SPRING MS24566-4B PULLEY
1-596-4 KNOB NAS1149F0332P WASHER
2-720 HANDLE NAS1149F0463P WASHER
4-591 RIGHT RUDDER PEDAL NAS1149F0532P WASHER
ASSEMBLY U1-2321 HORN
4-592 LEFT RUDDER PEDAL U1-2395 PULLEY
ASSEMBLY
8744-1 PLATE RUDDER ADJ. U1-2496-2 CABLE LEFT RUDDER
AN146-8S TURNBUCKLE U1-2496-3 CABLE RIGHT RUDDER
BUSHING
U1-2636
AN23-8 BOLT
AN23-9 BOLT U2-698 TAB CONT. CABLE
AN3-17A BOLT

FIXED EQUIPMENT

GENERAL

All components of the cabin enclosure are shown on the fixed equipment drawing except brake pedals,
rudder pedals or any part of the control system. These parts are included in the control system drawings.

Head lining, flock and flock sealer are shown in the Chief Parts Price List and may be ordered from your
dealer or distributor. High grade Paratex (soft type) covered with all wool two-tone fabric is used in the
construction of the seat bottom and back. The seat is adjustable by a lever at the lower front of the seat
bottom.

Fiberglass insulation at the firewall eliminates engine noise and insulates against heat radiated from the
engine.

Cabin heat is controlled from the instrument panel, the heated air entering at the valve opening in the lower
left corner of the firewall.

The instrument panel is hydro-formed all metal with a rich grained finish harmonizing with the interior
color scheme of the cabin. Instruments and engine controls are functionally grouped. The primary group
panel is sloped to provide better visibility of instruments. Decorative center panel trim may be removed

22
