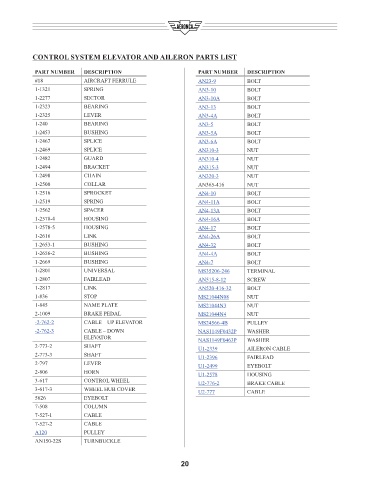

CONTROL SYSTEM ELEVATOR AND AILERON PARTS LIST

PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION
#18 AIRCRAFT FERRULE AN23-9 BOLT
1-1321 SPRING AN3-10 BOLT
1-2277 SECTOR AN3-10A BOLT
1-2323 BEARING AN3-13 BOLT
1-2325 LEVER AN3-4A BOLT
1-240 BEARING AN3-5 BOLT
1-2453 BUSHING AN3-5A BOLT
1-2467 SPLICE AN3-6A BOLT
1-2469 SPLICE AN310-3 NUT
1-2482 GUARD AN310-4 NUT
1-2494 BRACKET AN315-3 NUT
1-2498 CHAIN AN320-3 NUT
1-2500 COLLAR AN365-416 NUT
1-2516 SPROCKET AN4-10 BOLT
1-2519 SPRING AN4-11A BOLT
1-2562 SPACER AN4-13A BOLT
1-2578-4 HOUSING AN4-16A BOLT
1-2578-5 HOUSING AN4-17 BOLT
1-2616 LINK AN4-26A BOLT
1-2653-1 BUSHING AN4-32 BOLT
1-2656-2 BUSHING AN4-4A BOLT
1-2669 BUSHING AN4-7 BOLT
1-2801 UNIVERSAL MS35206-246 TERMINAL
1-2807 FAIRLEAD AN515-8-12 SCREW
1-2817 LINK AN520-416-32 BOLT
1-836 STOP MS21044N08 NUT
1-845 NAME PLATE MS21044N3 NUT
2-1009 BRAKE PEDAL MS21044N4 NUT
-2-762-2 CABLE – UP ELEVATOR MS24566-4B PULLEY
-2-762-3 CABLE – DOWN NAS1149F0432P WASHER
ELEVATOR NAS1149F0463P WASHER
2-773-2 SHAFT U1-2339 AILERON CABLE
2-773-3 SHAFT U1-2396 FAIRLEAD
2-797 LEVER U1-2499 EYEBOLT
2-806 HORN U1-2578 HOUSING
3-617 CONTROL WHEEL U2-776-2 BRAKE CABLE
3-617-3 WHEEL HUB COVER U2-777 CABLE
5626 EYEBOLT
7-508 COLUMN
7-527-1 CABLE
7-527-2 CABLE
A120 PULLEY
AN150-22S TURNBUCKLE
