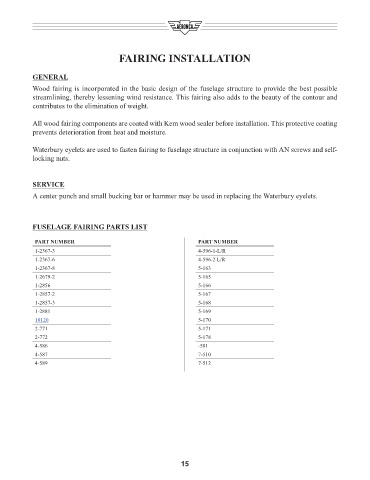

Page 18 - Aeronca 11AC Interactive Service Manual

FAIRING INSTALLATION

GENERAL
Wood fairing is incorporated in the basic design of the fuselage structure to provide the best possible
streamlining, thereby lessening wind resistance. This fairing also adds to the beauty of the contour and
contributes to the elimination of weight.

All wood fairing components are coated with Kem wood sealer before installation. This protective coating
prevents deterioration from heat and moisture.

Waterbury eyelets are used to fasten fairing to fuselage structure in conjunction with AN screws and self-
locking nuts.

SERVICE
A center punch and small bucking bar or hammer may be used in replacing the Waterbury eyelets.

FUSELAGE FAIRING PARTS LIST

PART NUMBER PART NUMBER
1-2367-3 4-596-1-L/R
1-2367-6 4-596-2 L/R
1-2367-8 5-163
1-2679-2 5-165
1-2856 5-166
1-2857-2 5-167
1-2857-3 5-168
1-2881 5-169
10120 5-170
2-771 5-171
2-772 5-178
4-586 -581
4-587 7-510
4-589 7-512

15
