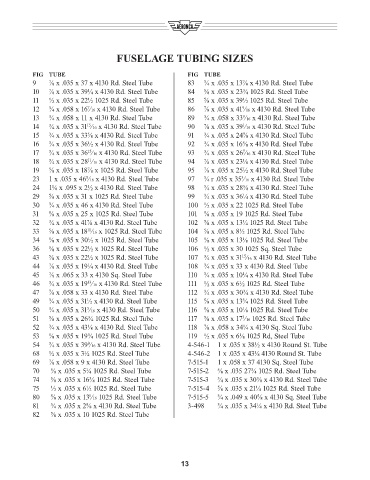

FUSELAGE TUBING SIZES

FIG TUBE FIG TUBE
9 ⅞ x .035 x 37 x 4130 Rd. Steel Tube 83 ¾ x .035 x 13⅞ x 4130 Rd. Steel Tube
10 ⅞ x .035 x 39¼ x 4130 Rd. Steel Tube 84 ⅝ x .035 x 23¾ 1025 Rd. Steel Tube
11 ½ x .035 x 22½ 1025 Rd. Steel Tube 85 ⅝ x .035 x 39½ 1025 Rd. Steel Tube
12 ¾ x .058 x 16 ⁄16 x 4130 Rd. Steel Tube 86 ⅞ x .035 x 41 ⁄16 x 4130 Rd. Steel Tube
9
7
13 ¾ x .058 x 11 x 4130 Rd. Steel Tube 89 ¾ x .058 x 33 ⁄16 x 4130 Rd. Steel Tube
9
14 ¾ x .035 x 31 ⁄16 x 4130 Rd. Steel Tube 90 ⅞ x .035 x 39 ⁄16 x 4130 Rd. Steel Tube
15
1
15 ¾ x .035 x 33⅝ x 4130 Rd. Steel Tube 91 ¾ x .035 x 24⅞ x 4130 Rd. Steel Tube
16 ¾ x .035 x 36½ x 4130 Rd. Steel Tube 92 ¾ x .035 x 16⅝ x 4130 Rd. Steel Tube
17 ¾ x .035 x 36 ⁄16 x 4130 Rd. Steel Tube 93 ¾ x .035 x 26 ⁄16 x 4130 Rd. Steel Tube
7
15
18 ¾ x .035 x 28 ⁄16 x 4130 Rd. Steel Tube 94 ⅞ x .035 x 23⅛ x 4130 Rd. Steel Tube
11
19 ⅝ x .035 x 18⅞ x 1025 Rd. Steel Tube 95 ⅞ x .035 x 25½ x 4130 Rd. Steel Tube
23 1 x .035 x 46 ⁄16 x 4130 Rd. Steel Tube 97 ¾ r .035 x 35 ⁄16 x 4130 Rd. Steel Tube
3
5
24 1⅛ x .095 x 2½ x 4130 Rd. Steel Tube 98 ¾ x .035 x 28⅝ x 4130 Rd. Steel Tube
29 ⅝ x .035 x 31 x 1025 Rd. Steel Tube 99 ¾ x .035 x 36¼ x 4130 Rd. Steel Tube
30 ¾ x .035 x 46 x 4130 Rd. Steel Tube 100 ½ x .035 x 22 1025 Rd. Steel Tube
31 ⅝ x .035 x 25 x 1025 Rd. Steel Tube 101 ⅝ x .035 x 19 1025 Rd. Steel Tube
32 ¾ x .035 x 41⅞ x 4130 Rd. Steel Tube 102 ⅝ x .035 x 13¼ 1025 Rd. Steel Tube
33 ⅝ x .035 x 18 ⁄16 x 1025 Rd. Steel Tube 104 ⅝ x .035 x 8½ 1025 Rd. Steel Tube
11
34 ⅝ x .035 x 30½ x 1025 Rd. Steel Tube 105 ⅝ x .035 x 13⅛ 1025 Rd. Steel Tube
36 ⅝ x .035 x 22½ x 1025 Rd. Steel Tube 106 ½ x .035 x 30 1025 Sq. Steel Tube
43 ⅝ x .035 x 22½ x 1025 Rd. Steel Tube 107 ¾ x .035 x 31 ⁄16 x 4130 Rd. Steel Tube
15
44 ⅞ x .035 x 19¼ x 4130 Rd. Steel Tube 108 ¾ x .035 x 33 x 4130 Rd. Steel Tube
45 ⅞ x .065 x 33 x 4130 Sq. Steel Tube 110 ¾ x .035 x 10¼ x 4130 Rd. Steel Tube
46 ¾ x .035 x 19 ⁄16 x 4130 Rd. Steel Tube 111 ½ x .035 x 6½ 1025 Rd. Steel Tube
13
47 ⅞ x .058 x 33 x 4130 Rd. Steel Tube 112 ¾ x .035 x 30¾ x 4130 Rd. Steel Tube
49 ¾ x .035 x 31½ x 4130 Rd. Steel Tube 115 ⅝ x .035 x 13¾ 1025 Rd. Steel Tube
50 ¾ x .035 x 31 ⁄16 x 4130 Rd. Steel Tube 116 ⅝ x .035 x 10⅛ 1025 Rd. Steel Tube
5
51 ⅝ x .035 x 26¾ 1025 Rd. Steel Tube 117 ⅝ x .035 x 17 ⁄16 1025 Rd. Steel Tube
3
52 ¾ x .035 x 43⅛ x 4130 Rd. Steel Tube 118 ⅞ x .058 x 34¼ x 4130 Sq. Steel Tube
53 ⅝ x .035 x 19¾ 1025 Rd. Steel Tube 119 ½ x .035 x 6⅛ 1025 Rd, Steel Tube
54 ¾ x .035 x 39 ⁄16 x 4130 Rd. Steel Tube 4-546-1 1 x .035 x 38½ x 4130 Round St. Tube
9
68 ½ x .035 x 3½ 1025 Rd. Steel Tube 4-546-2 1 x .035 x 43⅛ 4130 Round St. Tube
69 ⅞ x .058 x 9 x 4130 Rd. Steel Tube 7-515-1 1 x .058 x 37 4130 Sq. Steel Tube
70 ⅝ x .035 x 5¼ 1025 Rd. Steel Tube 7-515-2 ⅝ x .035 27¾ 1025 Rd. Steel Tube
74 ⅝ x .035 x 16¾ 1025 Rd. Steel Tube 7-515-3 ¾ x .035 x 30⅜ x 4130 Rd. Steel Tube
75 ½ x .035 x 6½ 1025 Rd. Steel Tube 7-515-4 ⅝ x .035 x 21¼ 1025 Rd. Steel Tube
80 ⅝ x .035 x 13 ⁄16 1025 Rd. Steel Tube 7-515-5 ¾ x .049 x 40⅝ x 4130 Sq. Steel Tube
1
81 ¾ x .035 x 2⅝ x 4130 Rd. Steel Tube 3-498 ¾ x .035 x 34¼ x 4130 Rd. Steel Tube
82 ⅝ x .035 x 10 1025 Rd. Steel Tube

13
