AN4-7 BOLT 1-2669 BUSHING AN310-4 BOLT WASHERS AS REQ MS21044N4 NUT AN4-10 BOLT

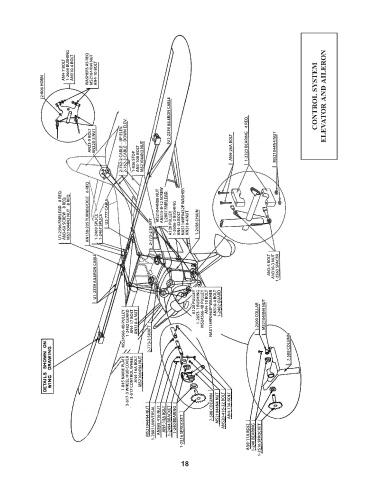

2-806 HORN CONTROL SYSTEM ELEVATOR AND AILERON

AN23-9 BOLT AN320-3 NUT 2-762-2 CABLE – UP ELEV. 2-762-3 CABLE – DOWN ELEV. 1-836 STOP AN3-10A BOLT MS21044N3 NUT U1-2339 AILERON CABLE AN4-26A BOLT 1-2323 BEARING 4 REQ. MS21044N4 NUT

U1-2396 FAIRLEAD 8 REQ. AN3-6A SCREW 8 REQ. MS21044N3 NUT 8 REQ. AN150-22S TURNBUCKLE 6 REQ 1-2469 SPLICE 1-2467 SPLICE U2-777 CABLE 2-773-2 SHAFT MS21044N08 NUT AN515-8-12 SCREW 1-2807 FAIRLEAD A120 PULLEY 1-2656-2 BUSHING AN4-32 BOLT NAS1149F0432P WASHER AN310-4 NUT 1-2498 CHAIN

U1-2339 AILERON CABLE A120 PULLEY AN4-10 BOLT AN310-4 BOLT 1-2482 GUARD AN3-5 BOLT AN310-3 NUT 1-2562 SPACER

MS24566-4B PULLEY 1-2482 GUARD AN4-17 BOLT AN310-4 NUT 2-773-3 SHAFT 1-2653-1 BUSHING MS24566-4B PULLEY NAS1149F0463P WASHER 1-2500 COLLAR MS21044N4 NUT 7-508 COLUMN

1-845 NAME PLATE 3-617-3 WHEEL HUB COVER 3-617 CONTROL WHEEL AN4-16A BOLT MS21044N4 NUT

MS21044N4 NUT 1-2801 UNIVERSAL AN365-416 NUT AN4-13A BOLT 1-2494 BRACKET 1-240 BEARING 1-2516 SPROCKET 7-508 COLUMN MS21044N4 NUT AN520-416-32 BOLT AN4-13A BOLT AN4-11A BOLT 1-240 BEARING 1-2516 SPROCKET
