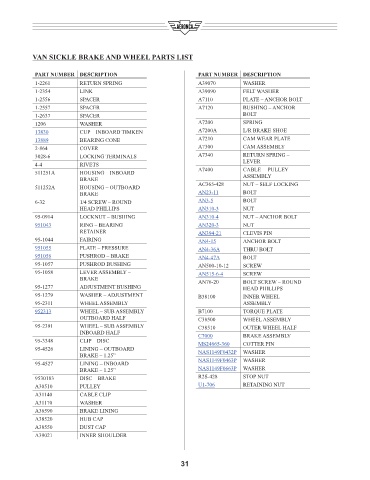

VAN SICKLE BRAKE AND WHEEL PARTS LIST

PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION
1-2261 RETURN SPRING A39070 WASHER
1-2354 LINK A39090 FELT WASHER
1-2556 SPACER A7110 PLATE – ANCHOR BOLT
1-2557 SPACER A7120 BUSHING – ANCHOR
1-2637 SPACER BOLT
1206 WASHER A7200 SPRING
13830 CUP – INBOARD TIMKEN A7200A L/R BRAKE SHOE
13889 BEARING CONE A7210 CAM WEAR PLATE
2-864 COVER A7300 CAM ASSEMBLY
3028-6 LOCKING TERMINALS A7340 RETURN SPRING –
4-4 RIVETS LEVER
511251A HOUSING – INBOARD A7400 CABLE – PULLEY
ASSEMBLY
BRAKE
511252A HOUSING – OUTBOARD AC365-428 NUT – SELF LOCKING
BRAKE AN23-11 BOLT
6-32 1/4 SCREW – ROUND AN3-5 BOLT
HEAD PHILLIPS AN310-3 NUT
95-0914 LOCKNUT – BUSHING AN310-4 NUT – ANCHOR BOLT
951043 RING – BEARING AN320-3 NUT
RETAINER AN394-21 CLEVIS PIN
95-1044 FAIRING AN4-15 ANCHOR BOLT
951055 PLATE – PRESSURE AN4-36A THRU BOLT
951056 PUSHROD – BRAKE AN4-47A BOLT
95-1057 PUSHROD BUSHING AN500-10-12 SCREW
95-1058 LEVER ASSEMBLY – AN515-6-4 SCREW
BRAKE AN76-20 BOLT SCREW – ROUND
95-1277 ADJUSTMENT BUSHING HEAD PHILLIPS
95-1279 WASHER – ADJUSTMENT B38100 INNER WHEEL
95-2311 WHEEL ASSEMBLY ASSEMBLY
952313 WHEEL – SUB ASSEMBLY B7100 TORQUE PLATE
OUTBOARD HALF C38500 WHEEL ASSEMBLY
95-2391 WHEEL – SUB ASSEMBLY C38510 OUTER WHEEL HALF
INBOARD HALF C7000 BRAKE ASSEMBLY
95-3348 CLIP – DISC MS24665-360 COTTER PIN
95-4526 LINING – OUTBOARD NAS1149F0432P WASHER
BRAKE – 1.25”
95-4527 LINING – INBOARD NAS1149F0463P WASHER
BRAKE – 1.25” NAS1149F0663P WASHER
9530183 DISC – BRAKE R2S-428 STOP NUT
A30510 PULLEY U1-706 RETAINING NUT
A31140 CABLE CLIP
A31170 WASHER
A36590 BRAKE LINING
A38520 HUB CAP
A38550 DUST CAP
A39021 INNER SHOULDER
