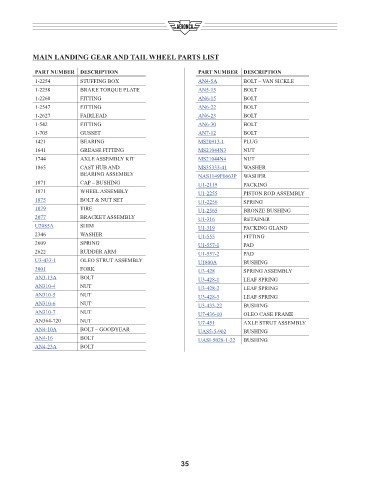

MAIN LANDING GEAR AND TAIL WHEEL PARTS LIST

PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION
1-2254 STUFFING BOX AN4-5A BOLT – VAN SICKLE
1-2258 BRAKE TORQUE PLATE AN5-15 BOLT
1-2260 FITTING AN6-15 BOLT
1-2547 FITTING AN6-22 BOLT
1-2627 FAIRLEAD AN6-23 BOLT
1-542 FITTING AN6-30 BOLT
1-705 GUSSET AN7-12 BOLT
1421 BEARING MS20913-1 PLUG
1641 GREASE FITTING MS21044N3 NUT
1744 AXLE ASSEMBLY KIT MS21044N4 NUT
1865 CAST HUB AND MS35333-41 WASHER
BEARING ASSEMBLY NAS1149F0663P WASHER
1871 CAP – BUSHING U1-2119 PACKING
1871 WHEEL ASSEMBLY U1-2255 PISTON ROD ASSEMBLY
1875 BOLT & NUT SET U1-2256 SPRING
1879 TIRE U1-2565 BRONZE BUSHING
2077 BRACKET ASSEMBLY U1-316 RETAINER
U2085A SHIM U1-319 PACKING GLAND
2346 WASHER U1-555 FITTING
2609 SPRING U1-557-1 PAD
2622 RUDDER ARM U1-557-2 PAD
U3-433-1 OLEO STRUT ASSEMBLY U1800A BUSHING
3001 FORK U3-428 SPRING ASSEMBLY
AN3-13A BOLT U3-428-1 LEAF SPRING
AN310-4 NUT U3-428-2 LEAF SPRING
AN310-5 NUT U3-428-3 LEAF SPRING
AN310-6 NUT U3-433-22 BUSHING
AN310-7 NUT U7-436-10 OLEO CASE FRAME
AN364-720 NUT U7-451 AXLE STRUT ASSEMBLY
AN4-10A BOLT – GOODYEAR UAS5-5-902 BUSHING
AN4-16 BOLT UASI-5028-1-22 BUSHING
AN4-23A BOLT
