Page 57 - Aeronca 11AC Interactive Service Manual

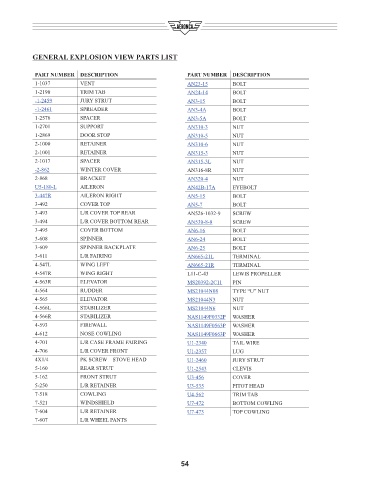

GENERAL EXPLOSION VIEW PARTS LIST

PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION
1-1037 VENT AN23-15 BOLT
1-2190 TRIM TAB AN24-14 BOLT
-1-2459 JURY STRUT AN3-15 BOLT
-1-2461 SPREADER AN3-4A BOLT
1-2576 SPACER AN3-5A BOLT
1-2701 SUPPORT AN310-3 NUT
1-2869 DOOR STOP AN310-5 NUT
2-1000 RETAINER AN310-6 NUT
2-1001 RETAINER AN315-3 NUT
2-1017 SPACER AN315-3L NUT
-2-862 WINTER COVER AN316-8R NUT
2-868 BRACKET AN320-4 NUT
U5-180-L AILERON AN42B-17A EYEBOLT
3-447R AILERON RIGHT AN5-15 BOLT
3-492 COVER TOP AN5-7 BOLT
3-493 L/R COVER TOP REAR AN526-1032-9 SCREW
3-494 L/R COVER BOTTOM REAR AN530-8-8 SCREW
3-495 COVER BOTTOM AN6-16 BOLT
3-608 SPINNER AN6-24 BOLT
3-609 SPINNER BACKPLATE AN6-25 BOLT
3-611 L/R FAIRING AN665-21L TERMINAL
4-547L WING LEFT AN665-21R TERMINAL
4-547R WING RIGHT L11-C-43 LEWIS PROPELLER
4-563R ELEVATOR MS20392-2C11 PIN
4-564 RUDDER MS21044N08 TYPE “U” NUT
4-565 ELEVATOR MS21044N3 NUT
4-566L STABILIZER MS21044N6 NUT
4-566R STABILIZER NAS1149F0332P WASHER
4-593 FIREWALL NAS1149F0563P WASHER
4-612 NOSE COWLING NAS1149F0663P WASHER
4-701 L/R CASE FRAME FAIRING U1-2340 TAIL WIRE
4-706 L/R COVER FRONT U1-2357 LUG
4X1/4 PK SCREW – STOVE HEAD U1-2460 JURY STRUT
5-160 REAR STRUT U1-2543 CLEVIS
5-162 FRONT STRUT U3-456 COVER
5-250 L/R RETAINER U3-535 PITOT HEAD
7-518 COWLING U4-562 TRIM TAB
7-521 WINDSHIELD U7-472 BOTTOM COWLING
7-604 L/R RETAINER U7-473 TOP COWLING
7-607 L/R WHEEL PANTS
