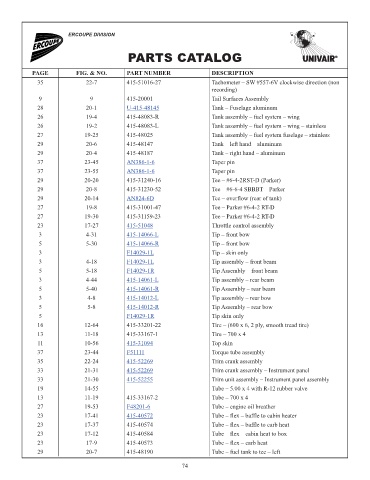

Page 79 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
35 22-7 415-51016-27 Tachometer – SW #557-6V clockwise direction (non NM!
recording)
9 9 415-20001 Tail Surfaces Assembly NM!
28 20-1 U-415-48145 Tank – Fuselage aluminum 2820.03
26 19-4 415-48083-R Tank assembly – fuel system – wing NM!
26 19-2 415-48083-L Tank assembly – fuel system – wing – stainless NM!
27 19-25 415-48025 Tank assembly – fuel system fuselage – stainless NM!
29 20-6 415-48147 Tank – left hand – aluminum NM!
29 20-4 415-48187 Tank – right hand – aluminum NM!
37 23-45 AN386-1-6 Taper pin 3.04
37 23-55 AN386-1-6 Taper pin 3.04
29 20-20 415-31240-16 Tee – #6-4-2RST-D (Parker) NM!
29 20-8 415-31230-52 Tee – #6-6-4 SBBBT – Parker NM!
29 20-14 AN824-6D Tee – overflow (rear of tank) 16.4
27 19-8 415-31001-47 Tee – Parker #6-4-2 RT-D NM!
27 19-30 415-31159-23 Tee – Parker #6-4-2 RT-D NM!
23 17-27 415-51048 Throttle control assembly 384.64
3 4-31 415-14066-L Tip – front bow 856.92
5 5-30 415-14066-R Tip – front bow 856.92
3 F14029-1L Tip – skin only 266.37
3 4-18 F14029-1L Tip assembly – front beam 266.37
5 5-18 F14029-1R Tip Assembly – front beam 266.37
3 4-44 415-14061-L Tip assembly – rear beam 214.71
5 5-40 415-14061-R Tip Assembly – rear beam 214.71
3 4-8 415-14012-L Tip assembly – rear bow 892.63
5 5-8 415-14012-R Tip Assembly – rear bow 892.63
5 F14029-1R Tip skin only 266.37
16 12-64 415-33201-22 Tire – (600 x 6, 2 ply, smooth tread tire) NM!
13 11-18 415-33167-1 Tire – 700 x 4 NM!
11 10-56 415-31094 Top skin 587.37
37 23-44 F51111 Torque tube assembly 158.98
35 22-24 415-52269 Trim crank assembly 38.19
33 21-31 415-52269 Trim crank assembly – Instrument panel 38.19
33 21-30 415-52255 Trim unit assembly – Instrument panel assembly 393.36
19 14-55 Tube – 5.00 x 4 with R-12 rubber valve
13 11-19 415-33167-2 Tube – 700 x 4 NM!
27 19-53 F48201-6 Tube – engine oil breather
23 17-41 415-40572 Tube – flex – baffle to cabin heater 89.62
23 17-37 415-40574 Tube – flex – baffle to carb heat NM!
23 17-12 415-40584 Tube – flex – cabin heat to box NM!
23 17-9 415-40573 Tube – flex – carb heat NM!
29 20-7 415-48190 Tube – fuel tank to tee – left NM!

74
