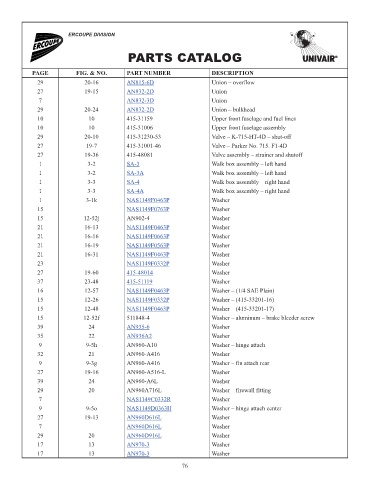

Page 81 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
29 20-16 AN815-6D Union – overflow 7.39
27 19-15 AN832-2D Union 12.5
7 AN832-3D Union 7.65
29 20-24 AN832-2D Union – bulkhead 12.5
10 10 415-31159 Upper front fuselage and fuel lines NM!
10 10 415-31006 Upper front fuselage assembly NM!
29 20-10 415-31230-53 Valve – K-715-HT-4D – shut-off NM!
27 19-7 415-31001-46 Valve – Parker No. 715. F1-4D NM!
27 19-36 415-48081 Valve assembly – strainer and shutoff NM!
1 3-2 SA-3 Walk box assembly – left hand 3820.39
1 3-2 SA-3A Walk box assembly – left hand 3820.39
1 3-3 SA-4 Walk box assembly – right hand 3820.39
1 3-3 SA-4A Walk box assembly – right hand 3820.39
1 3-1k NAS1149F0463P Washer 0.06
15 NAS1149F0763P Washer 0.17
15 12-52j AN902-4 Washer NM!
21 16-13 NAS1149F0463P Washer 0.06
21 16-16 NAS1149F0663P Washer 0.11
21 16-19 NAS1149F0563P Washer 0.08
21 16-31 NAS1149F0463P Washer 0.06
23 NAS1149F0332P Washer 0.04
27 19-60 415-48014 Washer 3.34
37 23-48 415-51119 Washer 1.05
16 12-57 NAS1149F0463P Washer – (1/4 SAE Plain) 0.06
15 12-26 NAS1149F0332P Washer – (415-33201-16) 0.04
15 12-48 NAS1149F0463P Washer – (415-33201-17) 0.06
15 12-52f 511848-4 Washer – aluminum – brake bleeder screw NM!
39 24 AN935-6 Washer 0.02
35 22 AN936A2 Washer 0.07
9 9-5h AN960-A10 Washer – hinge attach NM!
32 21 AN960-A416 Washer NM!
9 9-3g AN960-A416 Washer – fin attach rear NM!
27 19-16 AN960-A516-L Washer NM!
39 24 AN960-A6L Washer NM!
29 20 AN960A716L Washer – firewall fitting NM!
7 NAS1149C0332R Washer 0.06
9 9-5o NAS1149D0363H Washer – hinge attach center 0.05
27 19-13 AN960D616L Washer 0.05
7 AN960D616L Washer 0.05
29 20 AN960D916L Washer 0.14
17 13 AN970-3 Washer 0.16
17 13 AN970-3 Washer 0.16
