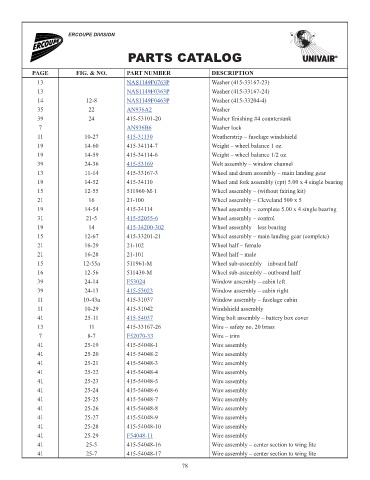

Page 83 - Ercoupe Parts Manual
P. 83
ERCOUPE DIVISION
PARTS CATALOG
PAGE FIG. & NO. PART NUMBER DESCRIPTION
13 NAS1149F0763P Washer (415-33167-23) 0.17
13 NAS1149F0363P Washer (415-33167-24) 0.04
14 12-8 NAS1149F0463P Washer (415-33204-4) 0.06
35 22 AN936A2 Washer 0.07
39 24 415-53101-20 Washer finishing #4 countersunk NM!
7 AN936B6 Washer lock 0.05
11 10-27 415-31130 Weatherstrip – fuselage windshield 35.68
19 14-60 415-34114-7 Weight – wheel balance 1 oz. NM!
19 14-59 415-34114-6 Weight – wheel balance 1/2 oz. NM!
39 24-36 415-53169 Welt assembly – window channel 61.85
13 11-14 415-33167-3 Wheel and drum assembly – main landing gear NM!
19 14-52 415-34110 Wheel and fork assembly (cpt) 5.00 x 4 single bearing NM!
15 12-55 511960-M-1 Wheel assembly – (without fairing kit) NM!
21 16 21-100 Wheel assembly – Cleveland 500 x 5 NM!
19 14-54 415-34114 Wheel assembly – complete 5.00 x 4 single bearing NM!
31 21-5 415-52055-6 Wheel assembly – control 113
19 14 415-34200-302 Wheel assembly – less bearing 294.74
15 12-67 415-33201-21 Wheel assembly – main landing gear (complete) NM!
21 16-29 21-102 Wheel half – female NM!
21 16-28 21-101 Wheel half – male NM!
15 12-55a 511961-M Wheel sub-assembly – inboard half NM!
16 12-56 511430-M Wheel sub-assembly – outboard half NM!
39 24-14 F53024 Window assembly – cabin left 696.54
39 24-13 415-53023 Window assembly – cabin right 603.33
11 10-43a 415-31037 Window assembly – fuselage cabin NM!
11 10-29 415-31042 Windshield assembly NM!
41 25-11 415-54037 Wing bolt assembly – battery box cover 27.98
13 11 415-33167-26 Wire – safety no. 20 brass NM!
7 8-7 F52070-33 Wire – trim 51.65
41 25-19 415-54048-1 Wire assembly NM!
41 25-20 415-54048-2 Wire assembly NM!
41 25-21 415-54048-3 Wire assembly NM!
41 25-22 415-54048-4 Wire assembly NM!
41 25-23 415-54048-5 Wire assembly NM!
41 25-24 415-54048-6 Wire assembly NM!
41 25-25 415-54048-7 Wire assembly NM!
41 25-26 415-54048-8 Wire assembly NM!
41 25-27 415-54048-9 Wire assembly NM!
41 25-28 415-54048-10 Wire assembly NM!
41 25-29 F54048-11 Wire assembly 12.86
41 25-5 415-54048-16 Wire assembly – center section to wing lite NM!
41 25-7 415-54048-17 Wire assembly – center section to wing lite NM!
