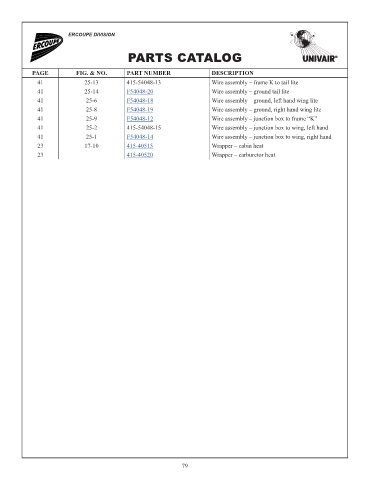

Page 84 - Ercoupe Parts Manual
P. 84
ERCOUPE DIVISION
PARTS CATALOG
PAGE FIG. & NO. PART NUMBER DESCRIPTION
41 25-13 415-54048-13 Wire assembly – frame K to tail lite NM!
41 25-14 F54048-20 Wire assembly – ground tail lite 8.26
41 25-6 F54048-18 Wire assembly – ground, left hand wing lite 4.58
41 25-8 F54048-19 Wire assembly – ground, right hand wing lite 4.58
41 25-9 F54048-12 Wire assembly – junction box to frame “K” 12.68
41 25-2 415-54048-15 Wire assembly – junction box to wing, left hand NM!
41 25-1 F54048-14 Wire assembly – junction box to wing, right hand 18.05
23 17-10 415-40515 Wrapper – cabin heat 359.53
23 415-40520 Wrapper – carburetor heat 288.19
79
