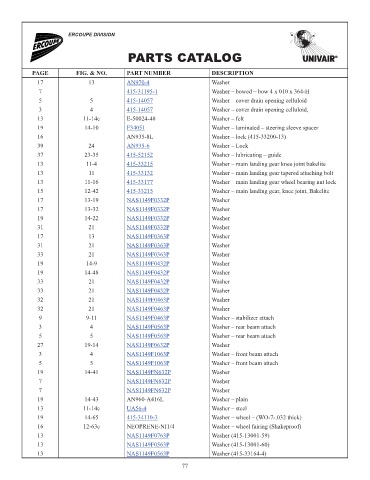

Page 82 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
17 13 AN970-4 Washer 0.28
7 415-31195-1 Washer – bowed – bow 4 x 010 x 364-H 0.7
5 5 415-14057 Washer – cover drain opening celluloid 17.41
3 4 415-14057 Washer – cover drain opening celluloid, 17.41
13 11-14c E-50024-48 Washer – felt NM!
19 14-10 F34051 Washer – laminated – steering sleeve spacer 19.89
16 AN935-8L Washer – lock (415-33200-13) NM!
39 24 AN935-6 Washer – Lock 0.02
37 23-35 415-52152 Washer – lubricating – guide 1.66
13 11-4 415-33215 Washer – main landing gear knee joint bakelite 9.02
13 11 415-33132 Washer – main landing gear tapered attaching bolt 38.47
13 11-16 415-33177 Washer – main landing gear wheel bearing nut lock 24.35
15 12-42 415-33215 Washer – main landing gear, knee joint, Bakelite 9.02
17 13-19 NAS1149F0332P Washer 0.04
17 13-32 NAS1149F0332P Washer 0.04
19 14-22 NAS1149F0332P Washer 0.04
31 21 NAS1149F0332P Washer 0.04
17 13 NAS1149F0363P Washer 0.04
31 21 NAS1149F0363P Washer 0.04
33 21 NAS1149F0363P Washer 0.04
19 14-9 NAS1149F0432P Washer 0.04
19 14-48 NAS1149F0432P Washer 0.04
33 21 NAS1149F0432P Washer 0.04
33 21 NAS1149F0432P Washer 0.04
32 21 NAS1149F0463P Washer 0.06
32 21 NAS1149F0463P Washer 0.06
9 9-11 NAS1149F0463P Washer – stabilizer attach 0.06
3 4 NAS1149F0563P Washer – rear beam attach 0.08
5 5 NAS1149F0563P Washer – rear beam attach 0.08
27 19-14 NAS1149F0632P Washer 0.06
3 4 NAS1149F1063P Washer – front beam attach 0.28
5 5 NAS1149F1063P Washer – front beam attach 0.28
19 14-41 NAS1149FN632P Washer 0.06
7 NAS1149FN632P Washer 0.06
7 NAS1149FN632P Washer 0.06
19 14-43 AN960-A416L Washer – plain NM!
13 11-14e UA56-4 Washer – steel 9.23
19 14-65 415-34110-3 Washer – wheel – (WO-7-.032 thick) 2.9
16 12-63c NEOPRENE-NI1/4 Washer – wheel fairing (Shakeproof) NM!
13 NAS1149F0763P Washer (415-13001-59) 0.17
13 NAS1149F0563P Washer (415-13001-60) 0.08
13 NAS1149F0563P Washer (415-33164-4) 0.08
77
