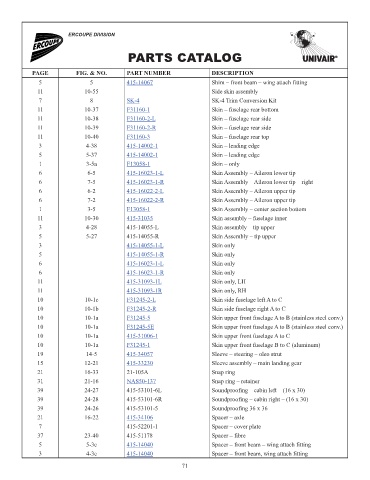

ERCOUPE DIVISION
PARTS CATALOG
PAGE FIG. & NO. PART NUMBER DESCRIPTION
5 5 415-14067 Shim – front beam – wing attach fitting 2.61
11 10-55 Side skin assembly
7 8 SK-4 SK-4 Trim Conversion Kit 1095.13
11 10-37 F31160-1 Skin – fuselage rear bottom 85.19
11 10-38 F31160-2-L Skin – fuselage rear side 636.73
11 10-39 F31160-2-R Skin – fuselage rear side 636.73
11 10-40 F31160-3 Skin – fuselage rear top 1492.61
3 4-38 415-14002-1 Skin – leading edge 507.97
5 5-37 415-14002-1 Skin – leading edge 507.97
1 3-5a F13058-1 Skin – only 403.46
6 6-5 415-16023-1-L Skin Assembly – Aileron lower tip 192.77
6 7-5 415-16023-1-R Skin Assembly – Aileron lower tip – right 192.77
6 6-2 415-16022-2-L Skin Assembly – Aileron upper tip 125.79
6 7-2 415-16022-2-R Skin Assembly – Aileron upper tip 168.24
1 3-5 F13058-1 Skin Assembly – center section bottom 403.46
11 10-30 415-31035 Skin assembly – fuselage inner 402.43
3 4-28 415-14055-L Skin assembly – tip upper NM!
5 5-27 415-14055-R Skin Assembly – tip upper NM!
3 415-14055-1-L Skin only 113.41
5 415-14055-1-R Skin only 113.41
6 415-16023-1-L Skin only 192.77
6 415-16023-1-R Skin only 192.77
11 415-31093-1L Skin only, LH 612.85
11 415-31093-1R Skin only, RH 612.85
10 10-1c F31245-2-L Skin side fuselage left A to C 648.56
10 10-1b F31245-2-R Skin side fuselage right A to C 648.56
10 10-1a F31245-5 Skin upper front fuselage A to B (stainless steel conv.) 395.24
10 10-1a F31245-5E Skin upper front fuselage A to B (stainless steel conv.) 412.97
10 10-1a 415-31006-1 Skin upper front fuselage A to C 350.23
10 10-1a F31245-1 Skin upper front fuselage B to C (aluminum) 227.02
19 14-5 415-34057 Sleeve – steering – oleo strut 830.08
15 12-21 415-33230 Sleeve assembly – main landing gear 201.33
21 16-33 21-105A Snap ring NM!
31 21-16 NAS50-137 Snap ring – retainer 1.75
39 24-27 415-53101-6L Soundproofing – cabin left – (16 x 30) NM!
39 24-28 415-53101-6R Soundproofing – cabin right – (16 x 30) NM!
39 24-26 415-53101-5 Soundproofing 36 x 36 NM!
21 16-22 415-34106 Spacer – axle 74.44
7 415-52201-1 Spacer – cover plate NM!
37 23-40 415-51178 Spacer – fibre NM!
5 5-3c 415-14040 Spacer – front beam – wing attach fitting 4.65
3 4-3c 415-14040 Spacer – front beam, wing attach fitting 4.65
71
