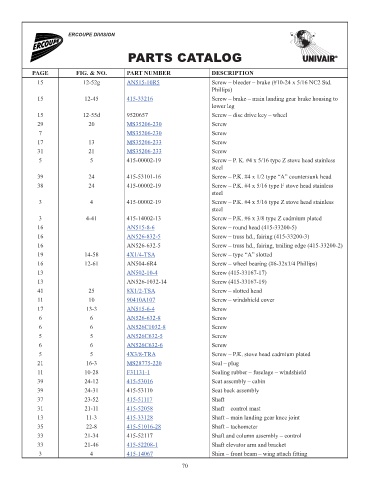

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
15 12-52g AN515-10R5 Screw – bleeder – brake (#10-24 x 5/16 NC2 Std. 0.07
Phillips)
15 12-45 415-33216 Screw – brake – main landing gear brake housing to 12.06
lower leg
15 12-55d 9520657 Screw – disc drive key – wheel NM!
29 20 MS35206-230 Screw 0.08
7 MS35206-230 Screw 0.08
17 13 MS35206-233 Screw 0.22
31 21 MS35206-233 Screw 0.22
5 5 415-00002-19 Screw – P. K. #4 x 5/16 type Z stove head stainless NM!
steel
39 24 415-53101-16 Screw – P.K. #4 x 1/2 type “A” countersunk head NM!
38 24 415-00002-19 Screw – P.K. #4 x 5/16 type F stove head stainless NM!
steel
3 4 415-00002-19 Screw – P.K. #4 x 5/16 type Z stove head stainless NM!
steel
3 4-41 415-14002-13 Screw – P.K. #6 x 3/8 type Z cadmium plated NM!
16 AN515-8-6 Screw – round head (415-33200-5) 0.15
16 AN526-832-5 Screw – truss hd., fairing (415-33200-3) 0.07
16 AN526-632-5 Screw – truss hd., fairing, trailing edge (415-33200-2) NM!
19 14-58 4X1/4-TSA Screw – type “A” slotted 0.19
16 12-61 AN504-6R4 Screw – wheel bearing (#6-32x1/4 Phillips) NM!
13 AN502-10-4 Screw (415-33167-17) 0.92
13 AN526-1032-14 Screw (415-33167-19) NM!
41 25 8X1/2-TSA Screw – slotted head 0.08
11 10 90410A107 Screw – windshield cover 0.11
17 13-3 AN515-6-4 Screw 0.03
6 6 AN526-632-8 Screw 0.16
6 6 AN526C1032-8 Screw 0.84
5 5 AN526C632-5 Screw 0.29
6 6 AN526C632-6 Screw 0.23
5 5 4X3/8-TRA Screw – P.K. stove head cadmium plated 0.1
21 16-3 MS28775-220 Seal – plug 0.78
11 10-28 F31131-1 Sealing rubber – fuselage – windshield 34.62
39 24-12 415-53016 Seat assembly – cabin 2691.73
39 24-31 415-53110 Seat back assembly NM!
37 23-52 415-51117 Shaft 46.47
31 21-11 415-52058 Shaft – control mast 89.84
13 11-3 415-33128 Shaft – main landing gear knee joint 150.16
35 22-8 415-51016-28 Shaft – tachometer 15.09
33 21-34 415-52117 Shaft and column assembly – control NM!
33 21-46 415-52208-1 Shaft elevator arm and bracket 20.16
3 4 415-14067 Shim – front beam – wing attach fitting 2.61
70
