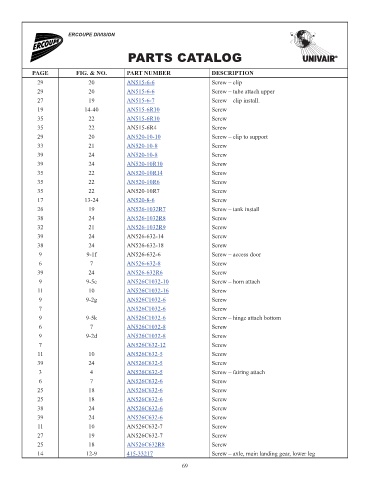

Page 74 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
29 20 AN515-6-6 Screw – clip 0.11
29 20 AN515-6-6 Screw – tube attach upper 0.11
27 19 AN515-6-7 Screw – clip install. 0.45
19 14-40 AN515-6R10 Screw 0.25
35 22 AN515-6R10 Screw 0.25
35 22 AN515-6R4 Screw NM!
29 20 AN520-10-10 Screw – clip to support 2.39
33 21 AN520-10-8 Screw 0.07
39 24 AN520-10-8 Screw 0.07
39 24 AN520-10R10 Screw 0.47
35 22 AN520-10R14 Screw 0.14
35 22 AN520-10R6 Screw 0.16
35 22 AN520-10R7 Screw NM!
17 13-24 AN520-8-6 Screw 0.14
26 19 AN526-1032R7 Screw – tank install 0.2
38 24 AN526-1032R8 Screw 0.18
32 21 AN526-1032R9 Screw 0.18
39 24 AN526-632-14 Screw NM!
38 24 AN526-632-18 Screw NM!
9 9-1f AN526-632-6 Screw – access door NM!
6 7 AN526-632-8 Screw 0.16
39 24 AN526-632R6 Screw 0.2
9 9-5c AN526C1032-10 Screw – horn attach 0.64
11 10 AN526C1032-16 Screw 0.6
9 9-2g AN526C1032-6 Screw 0.36
7 AN526C1032-6 Screw 0.36
9 9-5k AN526C1032-6 Screw – hinge attach bottom 0.36
6 7 AN526C1032-8 Screw 0.84
9 9-2d AN526C1032-8 Screw 0.84
7 AN526C632-12 Screw 0.15
11 10 AN526C632-5 Screw 0.29
39 24 AN526C632-5 Screw 0.29
3 4 AN526C632-5 Screw – fairing attach 0.29
6 7 AN526C632-6 Screw 0.23
25 18 AN526C632-6 Screw 0.23
25 18 AN526C632-6 Screw 0.23
38 24 AN526C632-6 Screw 0.23
39 24 AN526C632-6 Screw 0.23
11 10 AN526C632-7 Screw NM!
27 19 AN526C632-7 Screw NM!
25 18 AN526C632R8 Screw 0.18
14 12-9 415-33217 Screw – axle, main landing gear, lower leg 36.54
69
