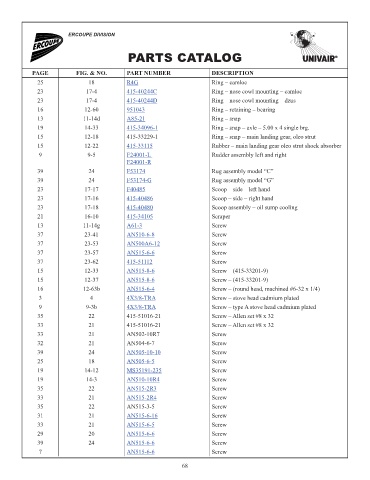

Page 73 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
25 18 R4G Ring – camloc 0.41
23 17-4 415-40244C Ring – nose cowl mounting – camloc 1127.99
23 17-4 415-40244D Ring – nose cowl mounting – dzus 1127.99
16 12-60 951043 Ring – retaining – bearing 10.15
13 11-14d A85-21 Ring – snap 25.95
19 14-33 415-34096-1 Ring – snap – axle – 5.00 x 4 single brg. 2.09
15 12-18 415-33229-1 Ring – snap – main landing gear, oleo strut NM!
15 12-22 415-33115 Rubber – main landing gear oleo strut shock absorber 11.24
9 9-5 F24001-L Rudder assembly left and right 3272.48
F24001-R
39 24 F53174 Rug assembly model “C” 184.8
39 24 F53174-G Rug assembly model “G” 184.8
23 17-17 F40485 Scoop – side – left hand 41.8
23 17-16 415-40486 Scoop – side – right hand 22.2
23 17-18 415-40480 Scoop assembly – oil sump cooling 339.8
21 16-10 415-34105 Scraper 21.96
13 11-14g A61-3 Screw 0.49
37 23-41 AN510-6-8 Screw 0.5
37 23-53 AN500A6-12 Screw 0.6
37 23-57 AN515-6-6 Screw 0.11
37 23-62 415-51112 Screw 8.96
15 12-33 AN515-8-6 Screw – (415-33201-9) 0.15
15 12-37 AN515-8-6 Screw – (415-33201-9) 0.15
16 12-63b AN515-6-4 Screw – (round head, machined #6-32 x 1/4) 0.03
3 4 4X3/8-TRA Screw – stove head cadmium plated 0.1
9 9-3b 4X3/8-TRA Screw – type A stove head cadmium plated 0.1
35 22 415-51016-21 Screw – Allen set #8 x 32 NM!
33 21 415-51016-21 Screw – Allen set #8 x 32 NM!
33 21 AN502-10R7 Screw NM!
32 21 AN504-6-7 Screw NM!
39 24 AN505-10-10 Screw 0.5
25 18 AN505-6-5 Screw 0.14
19 14-12 MS35191-235 Screw 3.06
19 14-3 AN510-10R4 Screw 0.6
35 22 AN515-2R3 Screw 0.07
33 21 AN515-2R4 Screw 0.11
35 22 AN515-3-5 Screw NM!
31 21 AN515-6-16 Screw 0.11
33 21 AN515-6-5 Screw 0.11
29 20 AN515-6-6 Screw 0.11
39 24 AN515-6-6 Screw 0.11
7 AN515-6-6 Screw 0.11

68
