Page 54 - Stinson 108 Series Interactive Digital Parts Catalog

STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

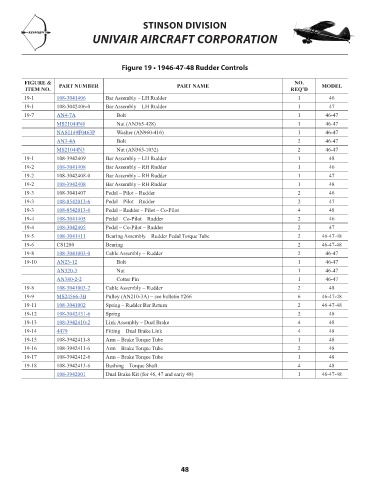

Figure 19 • 1946-47-48 Rudder Controls

FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICES
19-1 108-3041406 Bar Assembly – LH Rudder 1 46 214.13
19-1 108-3042406-0 Bar Assembly – LH Rudder 1 47 NM!
19-7 AN4-7A Bolt 1 46-47 0.18
MS21044N4 Nut (AN365-428) 1 46-47 0.3
NAS1149F0463P Washer (AN960-416) 1 46-47 0.06
AN3-4A Bolt 2 46-47 0.2
MS21044N3 Nut (AN365-1032) 2 46-47 0.24
19-1 108-3942409 Bar Assembly – LH Rudder 1 48 NM!
19-2 108-3041408 Bar Assembly – RH Rudder 1 46 214.13
19-2 108-3042408-0 Bar Assembly – RH Rudder 1 47 NM!
19-2 108-3942408 Bar Assembly – RH Rudder 1 48 1932.07
19-3 108-3041407 Pedal – Pilot – Rudder 2 46 NM!
19-3 108-8542013-6 Pedal – Pilot – Rudder 2 47 167.59
19-3 108-8542013-6 Pedal – Rudder – Pilot – Co-Pilot 4 48 167.59
19-4 108-3041405 Pedal – Co-Pilot – Rudder 2 46 26.56
19-4 108-3042405 Pedal – Co-Pilot – Rudder 2 47 38.21
19-5 108-3041411 Bearing Assembly – Rudder Pedal Torque Tube 2 46-47-48 226.05
19-6 CS1280 Bearing 2 46-47-48 NM!
19-8 108-3041003-0 Cable Assembly – Rudder 2 46-47 139.45
19-10 AN23-12 Bolt 1 46-47 1.3
AN320-3 Nut 1 46-47 1
AN380-2-2 Cotter Pin 1 46-47 0.04
19-8 108-3041003-2 Cable Assembly – Rudder 2 48 177.11
19-9 MS24566-3B Pulley (AN210-3A) – see bulletin #266 6 46-47-48 40.94
19-11 108-3041002 Spring – Rudder Bar Return 2 46-47-48 28.47
19-12 108-3042431-6 Spring 2 48 6.45
19-13 108-3942410-2 Link Assembly – Dual Brake 4 48 98.01
19-14 4479 Fitting – Dual Brake Link 4 48 96.41
19-15 108-3942411-8 Arm – Brake Torque Tube 1 48 NM!
19-16 108-3942411-6 Arm – Brake Torque Tube 2 48 NM!
19-17 108-3942412-6 Arm – Brake Torque Tube 1 48 NM!
19-18 108-3942413-6 Bushing – Torque Shaft 4 48 NM!
108-3942001 Dual Brake Kit (for 46, 47 and early 48) 1 46-47-48 3952.69

48
