Page 50 - Stinson 108 Series Interactive Digital Parts Catalog
P. 50
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

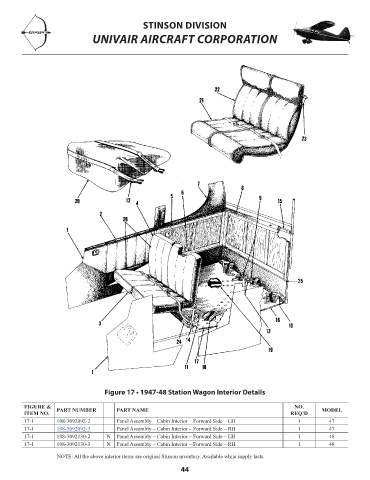

Figure 17 • 1947-48 Station Wagon Interior Details
FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICE
17-1 108-3092092-2 Panel Assembly – Cabin Interior – Forward Side – LH 1 47 NM!
17-1 108-3092092-3 Panel Assembly – Cabin Interior – Forward Side – RH 1 47 132.83
17-1 108-3092130-2 N Panel Assembly – Cabin Interior – Forward Side – LH 1 48 NM!
17-1 108-3092130-3 N Panel Assembly – Cabin Interior – Forward Side – RH 1 48 NM!
NOTE: All the above interior items are original Stinson inventory. Available while supply lasts.
44
