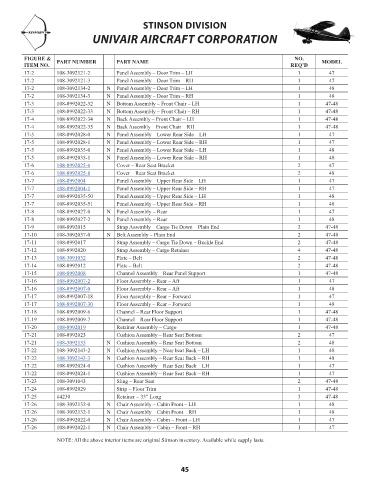

Page 51 - Stinson 108 Series Interactive Digital Parts Catalog

STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
17-2 108-3092121-2 Panel Assembly – Door Trim – LH 1 47 NM!
17-2 108-3092121-3 Panel Assembly – Door Trim – RH 1 47 NM!
17-2 108-3092134-2 N Panel Assembly – Door Trim – LH 1 48 NM!
17-2 108-3092134-3 N Panel Assembly – Door Trim – RH 1 48 NM!
17-3 108-8992022-32 N Bottom Assembly – Front Chair – LH 1 47-48 NM!
17-3 108-8992022-33 N Bottom Assembly – Front Chair – RH 1 47-48 NM!
17-4 108-8992022-34 N Back Assembly – Front Chair – LH 1 47-48 NM!
17-4 108-8992022-35 N Back Assembly – Front Chair – RH 1 47-48 NM!
17-5 108-8992028-0 N Panel Assembly – Lower Rear Side – LH 1 47 NM!
17-5 108-8992028-1 N Panel Assembly – Lower Rear Side – RH 1 47 NM!
17-5 108-8992035-0 N Panel Assembly – Lower Rear Side – LH 1 48 NM!
17-5 108-8992035-1 N Panel Assembly – Lower Rear Side – RH 1 48 NM!
17-6 108-8992025-6 Cover – Rear Seat Bracket 2 47 97.64
17-6 108-8992025-8 Cover – Rear Seat Bracket 2 48 29.75
17-7 108-8992004 Panel Assembly – Upper Rear Side – LH 1 47 111.12
17-7 108-8992004-1 Panel Assembly – Upper Rear Side – RH 1 47 111.12
17-7 108-8992035-50 Panel Assembly – Upper Rear Side – LH 1 48 NM!
17-7 108-8992035-51 Panel Assembly – Upper Rear Side – RH 1 48 NM!
17-8 108-8992027-0 N Panel Assembly – Rear 1 47 NM!
17-8 108-8992027-2 N Panel Assembly – Rear 1 48 NM!
17-9 108-8992015 Strap Assembly – Cargo Tie Down – Plain End 2 47-48 NM!
17-10 108-3092037-0 N Belt Assembly – Plain End 2 47-48 NM!
17-11 108-8992017 Strap Assembly – Cargo Tie Down – Buckle End 2 47-48 NM!
17-12 108-8992020 Strap Assembly – Cargo Retainer 4 47-48 NM!
17-13 108-3091032 Plate – Belt 2 47-48 38.79
17-14 108-8992012 Plate – Belt 2 47-48 NM!
17-15 108-8992008 Channel Assembly – Rear Panel Support 1 47-48 62.29
17-16 108-8992007-2 Floor Assembly – Rear – Aft 1 47 821.39
17-16 108-8992007-0 Floor Assembly – Rear – Aft 1 48 281.86
17-17 108-8992007-18 Floor Assembly – Rear – Forward 1 47 NM!
17-17 108-8992007-30 Floor Assembly – Rear – Forward 1 48 135.27
17-18 108-8992009-6 Channel – Rear Floor Support 1 47-48 NM!
17-19 108-8992009-7 Channel – Rear Floor Support 1 47-48 NM!
17-20 108-8992019 Retainer Assembly – Cargo 1 47-48 132.83
17-21 108-8992023 Cushion Assembly – Rear Seat Bottom 2 47 NM!
17-21 108-3092135 N Cushion Assembly – Rear Seat Bottom 2 48 235.68
17-22 108-3092143-2 N Cushion Assembly – Near beat Back – LH 1 48 NM!
17-22 108-3092143-3 N Cushion Assembly – Rear Seat Back – RH 1 48 321.27
17-22 108-8992024-0 Cushion Assembly – Rear Seat Back – LH 1 47 NM!
17-22 108-8992024-1 Cushion Assembly – Rear Seat Back – RH 1 47 NM!
17-23 108-3091043 Sling – Rear Seat 2 47-48 NM!
17-24 108-8992029 Strip – Floor Trim 1 47-48 NM!
17-25 #4230 Retainer – 33” Long 3 47-48 NM!
17-26 108-3092132-0 N Chair Assembly – Cabin Front – LH 1 48 NM!
17-26 108-3092132-1 N Chair Assembly – Cabin Front – RH 1 48 NM!
17-26 108-8992022-0 N Chair Assembly – Cabin – Front – LH 1 47 NM!
17-26 108-8992022-1 N Chair Assembly – Cabin – Front – RH 1 47 NM!

NOTE: All the above interior items are original Stinson inventory. Available while supply lasts.

45
