STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

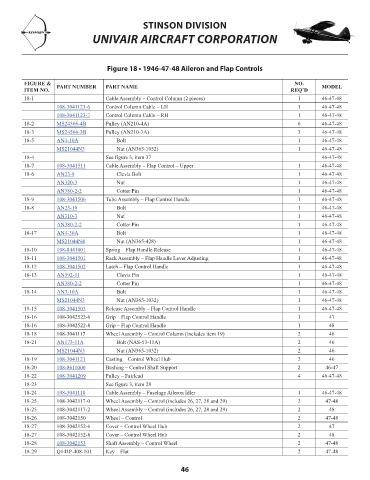

Figure 18 • 1946-47-48 Aileron and Flap Controls

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
18-1 Cable Assembly – Control Column (2 pieces) 1 46-47-48
108-3041123-6 Control Column Cable – LH 1 46-47-48 183.73
108-3041123-7 Control Column Cable – RH 1 46-47-48 183.73
18-2 MS24566-4B Pulley (AN210-4A) 6 46-47-48 64.08
18-3 MS24566-3B Pulley (AN210-3A) 3 46-47-48 40.94
18-5 AN4-10A Bolt 1 46-47-48 0.26
MS21044N3 Nut (AN365-1052) 1 46-47-48 0.24
18-4 See figure 3, item 37 46-47-48
18-7 108-3041511 Cable Assembly – Flap Control – Upper 1 46-47-48 113.27
18-6 AN23-9 Clevis Bolt 1 46-47-48 1.42
AN320-3 Nut 1 46-47-48 1
AN380-2-2 Cotter Pin 1 46-47-48 0.04
18-9 108-3041506 Tube Assembly – Flap Control Handle 1 46-47-48 369.63
18-8 AN23-10 Bolt 1 46-47-48 1.82
AN310-3 Nut 1 46-47-48 1.5
AN380-2-2 Cotter Pin 1 46-47-48 0.04
18-17 AN4-30A Bolt 1 46-47-48 0.66
MS21044N4 Nut (AN365-428) 1 46-47-48 0.3
18-10 108-8441001 Spring – Flap Handle Release 1 46-47-48 6.76
18-11 108-3041501 Rack Assembly – Flap Handle Lever Adjusting 1 46-47-48 51.22
18-12 108-3041502 Latch – Flap Control Handle 1 46-47-48 11.94
18-13 AN392-11 Clevis Pin 1 46-47-48 0.69
AN380-2-2 Cotter Pin 1 46-47-48 0.04
18-14 AN3-10A Bolt 1 46-47-48 0.2
MS21044N3 Nut (AN365-1032) 1 46-47-48 0.24
18-15 108-3041503 Release Assembly – Flap Control Handle 1 46-47-48 41.87
18-16 108-3042522-6 Grip – Flap Control Handle 1 47 NM!
18-16 108-3042522-8 Grip – Flap Control Handle 1 48 NM!
18-18 108-3041117 Wheel Assembly – Control Column (includes item 19) 2 46 NM!
18-21 AN173-11A Bolt (NAS-53-11A) 2 46 1.1
MS21044N3 Nut (AN365-1032) 2 46 0.24
18-19 108-3041121 Casting – Control Wheel Hub 2 46 12.06
18-20 108-8611000 Bushing – Control Shaft Support 2 46-47 24.77
18-22 108-3041209 Pulley – Fairlead 4 46-47-48 21.73
18-23 See figure 3, item 28
18-24 108-3041118 Cable Assembly – Fuselage Aileron Idler 1 46-47-48 77.44
18-25 108-3042117-0 Wheel Assembly – Control (includes 26, 27, 28 and 29) 2 47-48 NM!
18-25 108-3042117-2 Wheel Assembly – Control (includes 26, 27, 28 and 29) 2 48 NM!
18-26 108-3042150 Wheel – Control 2 47-48 NM!
18-27 108-3042152-6 Cover – Control Wheel Hub 2 47 NM!
18-27 108-3042152-8 Cover – Control Wheel Hub 2 48 NM!
18-28 108-3042153 Shaft Assembly – Control Wheel 2 47-48 162.76
18-29 Q141P-408-101 Key – Flat 2 47-48 NM!
