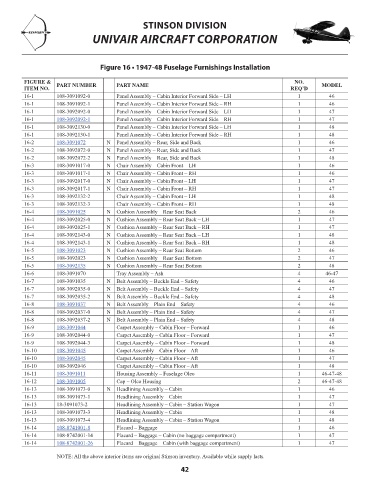

Page 48 - Stinson 108 Series Interactive Digital Parts Catalog

STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

Figure 16 • 1947-48 Fuselage Furnishings Installation

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
16-1 108-3091092-0 Panel Assembly – Cabin Interior Forward Side – LH 1 46 NM!
16-1 108-3091092-1 Panel Assembly – Cabin Interior Forward Side – RH 1 46 NM!
16-1 108-3092092-0 Panel Assembly – Cabin Interior Forward Side – LH 1 47 NM!
16-1 108-3092092-1 Panel Assembly – Cabin Interior Forward Side – RH 1 47 149.06
16-1 108-3092130-0 Panel Assembly – Cabin Interior Forward Side – LH 1 48 NM!
16-1 108-3092130-1 Panel Assembly – Cabin Interior Forward Side – RH 1 48 NM!
16-2 108-3091072 N Panel Assembly – Rear, Side and Back 1 46 682.77
16-2 108-3092072-0 N Panel Assembly – Rear, Side and Back 1 47 NM!
16-2 108-3092072-2 N Panel Assembly – Rear, Side and Back 1 48 NM!
16-3 108-3091017-0 N Chair Assembly – Cabin Front – LH 1 46 NM!
16-3 108-3091017-1 N Chair Assembly – Cabin Front – RH 1 46 NM!
16-3 108-3092017-0 N Chair Assembly – Cabin Front – LH 1 47 NM!
16-3 108-3092017-1 N Chair Assembly – Cabin Front – RH 1 47 NM!
16-3 108-3092132-2 Chair Assembly – Cabin Front – LH 1 48 NM!
16-3 108-3092132-3 Chair Assembly – Cabin Front – RH 1 48 NM!
16-4 108-3091025 N Cushion Assembly – Rear Seat Back 2 46 399.66
16-4 108-3092025-0 N Cushion Assembly – Rear Seat Back – LH 1 47 NM!
16-4 108-3092025-1 N Cushion Assembly – Rear Seat Back – RH 1 47 NM!
16-4 108-3092143-0 N Cushion Assembly – Rear Seat Back – LH 1 48 NM!
16-4 108-3092143-1 N Cushion Assembly – Rear Seat Back – RH 1 48 NM!
16-5 108-3091023 N Cushion Assembly – Rear Seat Bottom 2 46 234.24
16-5 108-3092023 N Cushion Assembly – Rear Seat Bottom 2 47 NM!
16-5 108-3092135 N Cushion Assembly – Rear Seat Bottom 2 48 235.68
16-6 108-3091070 Tray Assembly – Ash 4 46-47 NM!
16-7 108-3091035 N Belt Assembly – Buckle End – Safety 4 46 NM!
16-7 108-3092035-0 N Belt Assembly – Buckle End – Safety 4 47 NM!
16-7 108-3092035-2 N Belt Assembly – Buckle End – Safety 4 48 NM!
16-8 108-3091037 N Belt Assembly – Plain End – Safety 4 46 94.96
16-8 108-3092037-0 N Belt Assembly – Plain End – Safety 4 47 NM!
16-8 108-3092037-2 N Belt Assembly – Plain End – Safety 4 48 NM!
16-9 108-3091044 Carpet Assembly – Cabin Floor – Forward 1 46 97.56
16-9 108-3092044-0 Carpet Assembly – Cabin Floor – Forward 1 47 NM!
16-9 108-3092044-3 Carpet Assembly – Cabin Floor – Forward 1 48 NM!
16-10 108-3091045 Carpet Assembly – Cabin Floor – Aft 1 46 121.94
16-10 108-3092045 Carpet Assembly – Cabin Floor – Aft 1 47 134.84
16-10 108-3092046 Carpet Assembly – Cabin Floor – Aft 1 48 NM!
16-11 108-3091011 Housing Assembly – Fuselage Oleo 1 46-47-48 456.68
16-12 108-3091005 Cap – Oleo Housing 2 46-47-48 35.63
16-13 108-3091073-0 N Headlining Assembly – Cabin 1 46 NM!
16-13 108-3091073-1 Headlining Assembly – Cabin 1 47 NM!
16-13 18-3091073-2 Headlining Assembly – Cabin – Station Wagon 1 47 NM!
16-13 108-3091073-3 Headlining Assembly – Cabin 1 48 NM!
16-13 108-3091073-4 Headlining Assembly – Cabin – Station Wagon 1 48 NM!
16-14 108-8741001-8 Placard – Baggage 1 46 20.61
16-14 108-8742001-14 Placard – Baggage – Cabin (no baggage compartment) 1 47 NM!
16-14 108-8742001-26 Placard – Baggage – Cabin (with baggage compartment) 1 47 27.27
NOTE: All the above interior items are original Stinson inventory. Available while supply lasts.
