STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

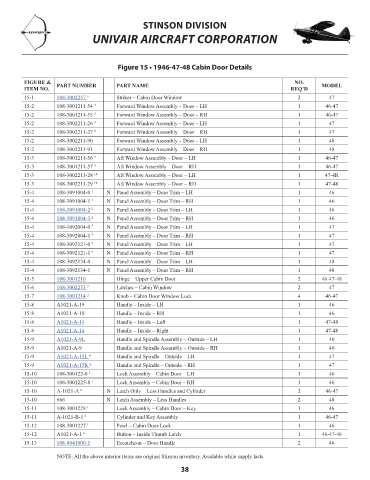

Figure 15 • 1946-47-48 Cabin Door Details

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
15-1 108-3002257 9 Striker – Cabin Door Window 2 47 8.58
15-2 108-3001211-54 3 Forward Window Assembly – Door – LH 1 46-47 NM!
15-2 108-3001211-55 3 Forward Window Assembly – Door – RH 1 46-47 NM!
15-2 108-3002211-26 9 Forward Window Assembly – Door – LH 1 47 NM!
15-2 108-3002211-27 9 Forward Window Assembly – Door – RH 1 47 NM!
15-2 108-3002211-90 Forward Window Assembly – Door – LH 1 48 NM!
15-2 108-3002211-91 Forward Window Assembly – Door – RH 1 48 NM!
15-3 108-3001211-56 3 Aft Window Assembly – Door – LH 1 46-47 NM!
15-3 108-3001211-57 3 Aft Window Assembly – Door – RH 1 46-47 NM!
15-3 108-3002211-28 10 Aft Window Assembly – Door – LH 1 47-4R NM!
15-3 108-3002211-29 10 Aft Window Assembly – Door – RH 1 47-48 NM!
15-4 108-3091004-0 1 N Panel Assembly – Door Trim – LH 1 46 NM!
15-4 108-3091004-1 1 N Panel Assembly – Door Trim – RH 1 46 NM!
15-4 108-3091004-2 2 N Panel Assembly – Door Trim – LH 1 46 122.86
15-4 108-3091004-3 2 N Panel Assembly – Door Trim – RH 1 46 122.86
15-4 108-1092004-0 7 N Panel Assembly – Door Trim – LH 1 47 NM!
15-4 108-3092004-1 7 N Panel Assembly – Door Trim – RH 1 47 NM!
15-4 108-3092121-0 9 N Panel Assembly – Door Trim – LH 1 47 NM!
15-4 108-3092121-1 9 N Panel Assembly – Door Trim – RH 1 47 NM!
15-4 108-3092134-0 N Panel Assembly – Door Trim – LH 1 48 NM!
15-4 108-3092134-1 N Panel Assembly – Door Trim – RH 1 48 NM!
15-5 108-3001210 Hinge – Upper Cabin Door 2 46-47-48 134.13
15-6 108-3002253 9 Latches – Cabin Window 2 47 19.71
15-7 108-3001214 3 Knob – Cabin Door Window Lock 4 46-47 4.56
15-8 A1021-A-19 Handle – Inside – LH 1 46 NM!
15-8 A1021-A-19 Handle – Inside – RH 1 46 NM!
15-8 A1021-A-14 Handle – Inside – Left 1 47-48 96.08
15-8 A1021-A-14 Handle – Inside – Right 1 47-48 96.08
15-9 A1021-A-9L Handle and Spindle Assembly – Outside – LH 1 46 120.7
15-9 A1021-A-9 Handle and Spindle Assembly – Outside – RH 1 46 NM!
15-9 A1021-A-15L 4 Handle and Spindle – Outside – LH 1 47 120.7
15-9 A1021-A-15R 4 Handle and Spindle – Outside – RH 1 47 120.7
15-10 108-300122-0 1 Lock Assembly – Cabin Door – LH 1 46 NM!
15-10 108-3001225-8 1 Lock Assembly – Cabin Door – RH 1 46 NM!
15-10 A-1021-A 6 N Latch Only – Less Handles and Cylinder 2 46-47 NM!
15-10 666 N Latch Assembly – Less Handles 2 48 NM!
15-11 108-3001228 1 Lock Assembly – Cabin Door – Key 1 46 NM!
15-11 A-1021-B-1 6 Cylinder and Key Assembly 1 46-47 NM!
15-12 108-3001227 1 Pawl – Cabin Door Lock 1 46 NM!
15-12 A1021-A-1 6 Button – Inside Thumb Latch 1 46-47-48 NM!
15-13 108-8041000-1 Escutcheon – Door Handle 2 46 29.32

NOTE: All the above interior items are original Stinson inventory. Available while supply lasts.
