STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

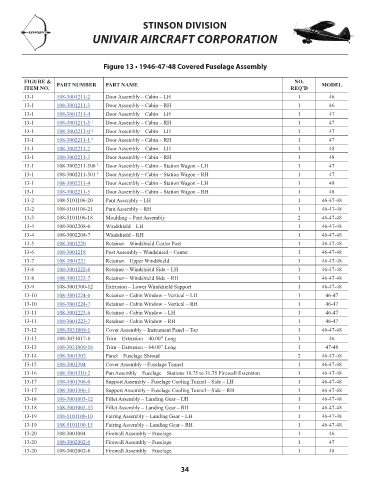

Figure 13 • 1946-47-48 Covered Fuselage Assembly

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
13-1 108-3001211-2 Door Assembly – Cabin – LH 1 46 1288.19
13-1 108-3001211-3 Door Assembly – Cabin – RH 1 46 1288.19
13-1 108-3001211-4 Door Assembly – Cabin – LH 1 47 1288.19
13-1 108-3001211-5 1 Door Assembly – Cabin – RH 1 47 1288.19
13-1 108-3002211-0 2 Door Assembly – Cabin – LH 1 47 1288.17
13-1 108-3002211-1 2 Door Assembly – Cabin – RH 1 47 1288.17
13-1 108-3002211-2 Door Assembly – Cabin – LH 1 48 1288.17
13-1 108-3002211-3 Door Assembly – Cabin – RH 1 48 1288.17
13-1 108-3002211-500 3 Door Assembly – Cabin – Station Wagon – LH 1 47 NM!
13-1 108-3002211-501 3 Door Assembly – Cabin – Station Wagon – RH 1 47 NM!
13-1 108-3002211-4 Door Assembly – Cabin – Station Wagon – LH 1 48 712.34
13-1 108-3002211-5 Door Assembly – Cabin – Station Wagon – RH 1 48 712.34
13-2 108-5101106-20 Pant Assembly – LH 1 46-47-48 NM!
13-2 108-5101106-21 Pant Assembly – RH 1 46-47-48 NM!
13-3 108-5101106-18 Moulding – Pant Assembly 2 46-47-48 NM!
13-4 108-3002208-6 Windshield – LH 1 46-47-48 NM!
13-4 108-3002208-7 Windshield – RH 1 46-47-48 NM!
13-5 108-3001220 Retainer – Windshield Center Post 1 46-47-48 25.3
13-6 108-3001218 Post Assembly – Windshield – Center 1 46-47-48 212.54
13-7 108-3001221 Retainer – Upper Windshield 1 46-47-48 25.3
13-8 108-3001222-6 Retainer – Windshield Side – LH 1 46-47-48 46
13-8 108-3001222-7 Retainer – Windshield Side – RH 1 46-47-48 46
13-9 108-3001300-12 Extrusion – Lower Windshield Support 1 46-47-48 NM!
13-10 108-3001224-6 Retainer – Cabin Window – Vertical – LH 1 46-47 11.49
13-10 108-3001224-7 Retainer – Cabin Window – Vertical – RH 1 46-47 11.49
13-11 108-3001223-6 Retainer – Cabin Window – LH 1 46-47 53.45
13-11 108-3001223-7 Retainer – Cabin Window – RH 1 46-47 67.46
13-12 108-3031009-1 Cover Assembly – Instrument Panel – Top 1 46-47-48 241.52
13-13 108-3031017-8 Trim – Extrusion – 40.00” Long 1 46 NM!
13-13 108-3031009-16 Trim – Extrusion – 64.00” Long 1 47-48 105.63
13-14 108-3001302 Panel – Fuselage Shroud 2 46-47-48 286.66
13-15 108-3001304 Cover Assembly – Fuselage Tunnel 1 46-47-48 214.13
13-16 108-3001310-2 Pan Assembly – Fuselage – Stations 18.75 to 31.75 Firewall Extension 1 46-47-48 210.05
13-17 108-3001306-0 Support Assembly – Fuselage Cooling Tunnel – Side – LH 1 46-47-48 107.35
13-17 108-3001306-1 Support Assembly – Fuselage Cooling Tunnel – Side – RH 1 46-47-48 107.35
13-18 108-3001003-12 Fillet Assembly – Landing Gear – LH 1 46-47-48 598.05
13-18 108-3001003-13 Fillet Assembly – Landing Gear – RH 1 46-47-48 598.05
13-19 108-5101100-10 Fairing Assembly – Landing Gear – LH 1 46-47-48 391.87
13-19 108-5101100-15 Fairing Assembly – Landing Gear – RH 1 46-47-48 380.64
13-20 108-3001004 Firewall Assembly – Fuselage 1 46 NM!
13-20 108-3002002-6 Firewall Assembly – Fuselage 1 47 925.53
13-20 108-3002002-8 Firewall Assembly – Fuselage 1 48 NM!

34
