P. 37
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

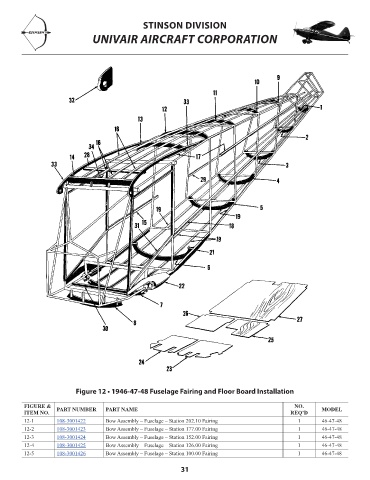

Figure 12 • 1946-47-48 Fuselage Fairing and Floor Board Installation
FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
12-1 108-3001422 Bow Assembly – Fuselage – Station 202.10 Fairing 1 46-47-48 62.36
12-2 108-3001423 Bow Assembly – Fuselage – Station 177.00 Fairing 1 46-47-48 78.61
12-3 108-3001424 Bow Assembly – Fuselage – Station 152.00 Fairing 1 46-47-48 196.87
12-4 108-3001425 Bow Assembly – Fuselage – Station 126.00 Fairing 1 46-47-48 166.59
12-5 108-3001426 Bow Assembly – Fuselage – Station 100.00 Fairing 1 46-47-48 189.79
31
