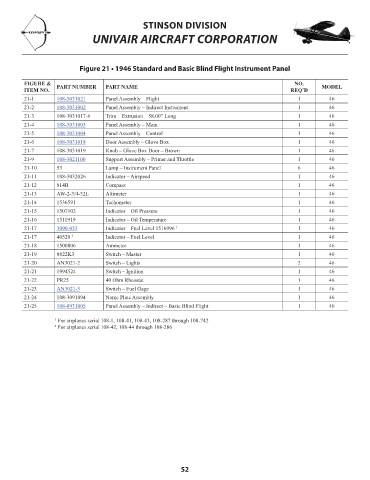

Figure 21 • 1946 Standard and Basic Blind Flight Instrument Panel

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
21-1 108-3031021 Panel Assembly – Flight 1 46 241.92
21-2 108-3031002 Panel Assembly – Indirect Instrument 1 46 56.12
21-3 108-3031017-6 Trim – Extrusion – 58.00” Long 1 46 NM!
21-4 108-3031003 Panel Assembly – Main 1 46 423.68
21-5 108-3031004 Panel Assembly – Control 1 46 76.98
21-6 108-3031018 Door Assembly – Glove Box 1 46 93.22
21-7 108-3031019 Knob – Glove Box Door – Brown 1 46 NM!
21-9 108-3021100 Support Assembly – Primer and Throttle 1 46 42.76
21-10 53 Lamp – Instrument Panel 6 46 NM!
21-11 108-3032026 Indicator – Airspeed 1 46 NM!
21-12 814B Compass 1 46 NM!
21-13 AW-2-3/4-32L Altimeter 1 46 NM!
21-14 1536591 Tachometer 1 46 NM!
21-15 1507102 Indicator – Oil Pressure 1 46 NM!
21-16 1511919 Indicator – Oil Temperature 1 46 NM!
21-17 3090-033 Indicator – Fuel Level 1516996 1 1 46 237.42
21-17 40520 2 Indicator – Fuel Level 1 46 NM!
21-18 1500806 Ammeter 1 46 NM!
21-19 8822K3 Switch – Master 1 46 NM!
21-20 AN3021-2 Switch – Lights 2 46 NM!
21-21 1994524 Switch – Ignition 1 46 NM!
21-22 PR25 40 Ohm Rheostat 1 46 NM!
21-23 AN3021-3 Switch – Fuel Gage 1 46 29.75
21-24 108-3091094 Name Plate Assembly 1 46 NM!
21-25 108-8931005 Panel Assembly – Indirect – Basic Blind Flight 1 46 309.76

1 For airplanes serial 108-1, 108-41, 108-43, 108-287 through 108-742
2 For airplanes serial 108-42, 108-44 through 108-286
