STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

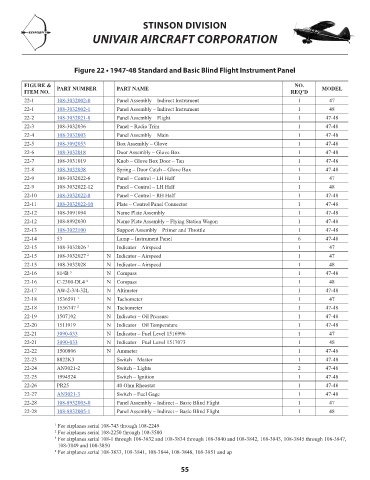

Figure 22 • 1947-48 Standard and Basic Blind Flight Instrument Panel

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
22-1 108-3032002-0 Panel Assembly – Indirect Instrument 1 47 165.06
22-1 108-3032002-1 Panel Assembly – Indirect Instrument 1 48 165.06
22-2 108-3032021-8 Panel Assembly – Flight 1 47-48 352.81
22-3 108-3032036 Panel – Radio Trim 1 47-48 NM!
22-4 108-3032003 Panel Assembly – Main 1 47-48 305.74
22-5 108-3092053 Box Assembly – Glove 1 47-48 115.11
22-6 108-3032018 Door Assembly – Glove Box 1 47-48 156.53
22-7 108-3031019 Knob – Glove Box Door – Tan 1 47-48 NM!
22-8 108-3032038 Spring – Door Catch – Glove Box 1 47-48 33.01
22-9 108-3032022-6 Panel – Control – LH Half 1 47 NM!
22-9 108-3032022-12 Panel – Control – LH Half 1 48 NM!
22-10 108-3032022-8 Panel – Control – RH Half 1 47-48 331.69
22-11 108-3032022-10 Plate – Control Panel Connector 1 47-48 16.28
22-12 108-3091094 Name Plate Assembly 1 47-48 NM!
22-12 108-8992030 Name Plate Assembly – Flying Station Wagon 1 47-48 NM!
22-13 108-3022100 Support Assembly – Primer and Throttle 1 47-48 41.46
22-14 53 Lamp – Instrument Panel 6 47-48 NM!
22-15 108-3032026 1 Indicator – Airspeed 1 47 NM!
22-15 108-3032027 2 N Indicator – Airspeed 1 47 NM!
22-15 108-3032028 N Indicator – Airspeed 1 48 NM!
22-16 814B 3 N Compass 1 47-48 NM!
22-16 C-2300-DL4 4 N Compass 1 48 232.86
22-17 AW-2-3/4-32L N Altimeter 1 47-48 NM!
22-18 1536591 1 N Tachometer 1 47 NM!
22-18 1536747 2 N Tachometer 1 47-48 NM!
22-19 1507102 N Indicator – Oil Pressure 1 47-48 NM!
22-20 1511919 N Indicator – Oil Temperature 1 47-48 NM!
22-21 3090-033 N Indicator – Fuel Level 1516996 1 47 237.42
22-21 3090-033 N Indicator – Fuel Level 1517073 1 48 237.42
22-22 1500806 N Ammeter 1 47-48 NM!
22-23 8822K3 Switch – Master 1 47-48 NM!
22-24 AN3021-2 Switch – Lights 2 47-48 NM!
22-25 1994524 Switch – Ignition 1 47-48 NM!
22-26 PR25 40 Ohm Rheostat 1 47-48 NM!
22-27 AN3021-3 Switch – Fuel Gage 1 47-48 29.75
22-28 108-8932005-0 Panel Assembly – Indirect – Basic Blind Flight 1 47 149.06
22-28 108-8932005-1 Panel Assembly – Indirect – Basic Blind Flight 1 48 149.06

1 For airplanes serial 108-743 through 108-2249
2 For airplanes serial 108-2250 through 108-3500
3 For airplanes serial 108-1 through 108-3832 and 108-3834 through 108-3840 and 108-3842, 108-3843, 108-3845 through 108-3847,
108-3849 and 108-3850
4 For airplanes serial 108-3833, 108-3841, 108-3844, 108-3848, 108-3851 and up

55
