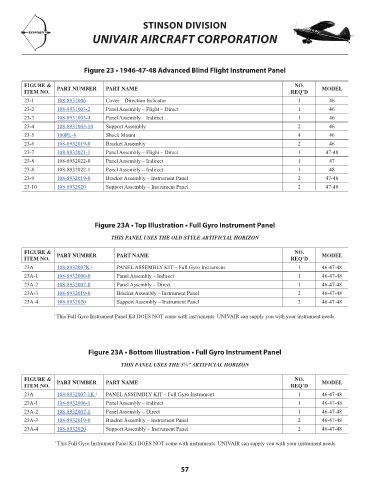

STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

Figure 23 • 1946-47-48 Advanced Blind Flight Instrument Panel

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
23-1 108-8931006 Cover – Direction Indicator 1 46 99.42
23-2 108-8931003-2 Panel Assembly – Flight – Direct 1 46 107.35
23-3 108-8931003-4 Panel Assembly – Indirect 1 46 232.56
23-4 108-8931003-10 Support Assembly 2 46 78.05
23-5 100PL-4 Shock Mount 4 46 14.5
23-6 108-8932019-0 Bracket Assembly 2 46 84.25
23-7 108-8932021-1 Panel Assembly – Flight – Direct 1 47-48 284.37
23-8 108-8932022-0 Panel Assembly – Indirect 1 47 NM!
23-8 108-8932022-1 Panel Assembly – Indirect 1 48 NM!
23-9 108-8932019-0 Bracket Assembly – Instrument Panel 2 47-48 84.25
23-10 108-8932020 Support Assembly – Instrument Panel 2 47-48 229.58

Figure 23A • Top Illustration • Full Gyro Instrument Panel
THIS PANEL USES THE OLD STYLE ARTIFICIAL HORIZON

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
23A 108-8932007K 1 PANEL ASSEMBLY KIT – Full Gyro Instrument 1 46-47-48 1512.09
23A-1 108-8932006-0 Panel Assembly – Indirect 1 46-47-48 564.63
23A-2 108-8932007-0 Panel Assembly – Direct 1 46-47-48 321.81
23A-3 108-8932019-0 Bracket Assembly – Instrument Panel 2 46-47-48 84.25
23A-4 108-8932020 Support Assembly – Instrument Panel 2 46-47-48 229.58

1 This Full Gyro Instrument Panel Kit DOES NOT come with instruments. UNIVAIR can supply you with your instrument needs.

Figure 23A • Bottom Illustration • Full Gyro Instrument Panel
THIS PANEL USES THE 3 ⁄8” ARTIFICIAL HORIZON
1
FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
23A 108-8932007-1K 1 PANEL ASSEMBLY KIT – Full Gyro Instrument 1 46-47-48 1512.09
23A-1 108-8932006-1 Panel Assembly – Indirect 1 46-47-48 430.5
23A-2 108-8932007-1 Panel Assembly – Direct 1 46-47-48 268.43
23A-3 108-8932019-0 Bracket Assembly – Instrument Panel 2 46-47-48 84.25
23A-4 108-8932020 Support Assembly – Instrument Panel 2 46-47-48 229.58

1 This Full Gyro Instrument Panel Kit DOES NOT come with instruments. UNIVAIR can supply you with your instrument needs.

57
