STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

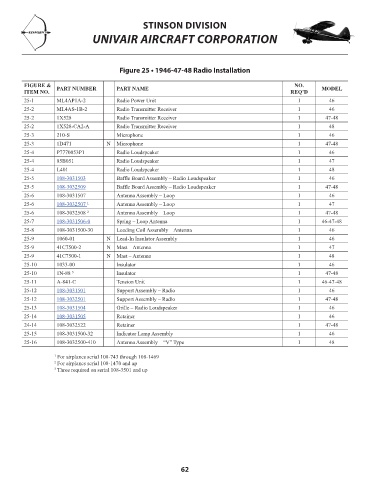

Figure 25 • 1946-47-48 Radio Installation

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
25-1 ML4AP1A-2 Radio Power Unit 1 46 NM!
25-2 ML4AS-1B-2 Radio Transmitter Receiver 1 46 NM!
25-2 1X528 Radio Transmitter Receiver 1 47-48 NM!
25-2 1X528-CA2-A Radio Transmitter Receiver 1 48 NM!
25-3 210-S Microphone 1 46 NM!
25-3 1D471 N Microphone 1 47-48 NM!
25-4 P7770053P1 Radio Loudspeaker 1 46 NM!
25-4 85B051 Radio Loudspeaker 1 47 NM!
25-4 L401 Radio Loudspeaker 1 48 NM!
25-5 108-3031503 Baffle Board Assembly – Radio Loudspeaker 1 46 70.24
25-5 108-3032509 Baffle Board Assembly – Radio Loudspeaker 1 47-48 67.93
25-6 108-3031507 Antenna Assembly – Loop 1 46 NM!
25-6 108-3032507 1 Antenna Assembly – Loop 1 47 32.48
25-6 108-3032508 2 Antenna Assembly – Loop 1 47-48 NM!
25-7 108-3031506-0 Spring – Loop Antenna 1 46-47-48 2.69
25-8 108-3031500-30 Loading Coil Assembly – Antenna 1 46 NM!
25-9 1060-01 N Lead-In Insulator Assembly 1 46 NM!
25-9 41C7500-2 N Mast – Antenna 1 47 NM!
25-9 41C7500-1 N Mast – Antenna 1 48 NM!
25-10 1033-00 Insulator 1 46 NM!
25-10 1N-88 3 Insulator 1 47-48 NM!
25-11 A-841-C Tension Unit 1 46-47-48 NM!
25-12 108-3031501 Support Assembly – Radio 1 46 10.84
25-12 108-3032501 Support Assembly – Radio 1 47-48 129.5
25-13 108-3031504 Grille – Radio Loudspeaker 1 46 12.17
25-14 108-3031505 Retainer 1 46 16.73
24-14 108-3032522 Retainer 1 47-48 NM!
25-15 108-3031500-32 Indicator Lamp Assembly 1 46 NM!
25-16 108-3032500-410 Antenna Assembly – “V” Type 1 48 NM!

1 For airplanes serial 108-743 through 108-1469
2 For airplanes serial 108-1470 and up
3 Three required on serial 108-3501 and up

62
