Page 71 - Stinson 108 Series Interactive Digital Parts Catalog
P. 71
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

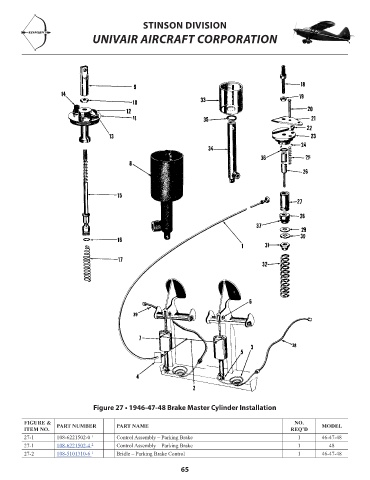

Figure 27 • 1946-47-48 Brake Master Cylinder Installation
FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICE
27-1 108-6221502-0 1 Control Assembly – Parking Brake 1 46-47-48 NM!
27-1 108-6221502-4 2 Control Assembly – Parking Brake 1 48 138.53
27-2 108-5101310-6 1 Bridle – Parking Brake Control 1 46-47-48 132.78
65
