STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

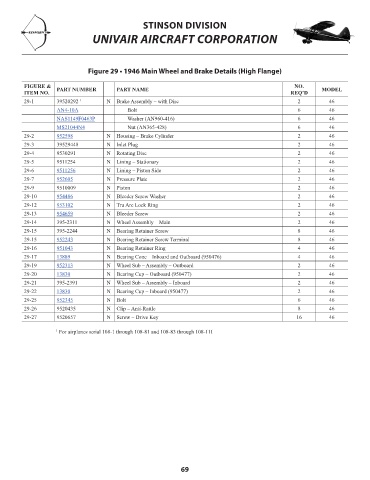

Figure 29 • 1946 Main Wheel and Brake Details (High Flange)

FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICE
29-1 39520292 1 N Brake Assembly – with Disc 2 46 NM!
AN4-10A Bolt 6 46 0.26
NAS1149F0463P Washer (AN960-416) 6 46 0.06
MS21044N4 Nut (AN365-428) 6 46 0.3
29-2 952598 N Housing – Brake Cylinder 2 46 551.99
29-3 39529448 N Inlet Plug 2 46 NM!
29-4 9530291 N Rotating Disc 2 46 NM!
29-5 9511254 N Lining – Stationary 2 46 NM!
29-6 9511256 N Lining – Piston Side 2 46 37.87
29-7 952605 N Pressure Plate 2 46 7.68
29-9 9510009 N Piston 2 46 NM!
29-10 954486 N Bleeder Screw Washer 2 46 52.19
29-12 953102 N Tru Arc Lock Ring 2 46 7.9
29-13 954659 N Bleeder Screw 2 46 4.2
29-14 395-2311 N Wheel Assembly – Main 2 46 NM!
29-15 395-2244 N Bearing Retainer Screw 8 46 NM!
29-15 952243 N Bearing Retainer Screw Terminal 8 46 0.87
29-16 951043 N Bearing Retainer Ring 4 46 10.15
29-17 13889 N Bearing Cone – Inboard and Outboard (950476) 4 46 77.98
29-19 952313 N Wheel Sub – Assembly – Outboard 2 46 241.4
29-20 13830 N Bearing Cup – Outboard (950477) 2 46 31.65
29-21 395-2391 N Wheel Sub – Assembly – Inboard 2 46 NM!
29-22 13830 N Bearing Cup – Inboard (950477) 2 46 31.65
29-25 952345 N Bolt 6 46 11.13
29-26 9520435 N Clip – Anti-Rattle 8 46 NM!
29-27 9520657 N Screw – Drive Key 16 46 NM!

1 For airplanes serial 108-1 through 108-81 and 108-83 through 108-111

69
