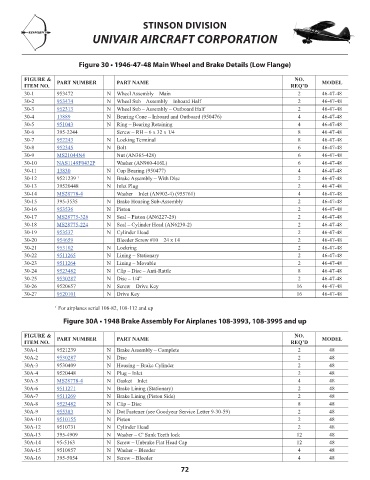

Page 78 - Stinson 108 Series Interactive Digital Parts Catalog

STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

Figure 30 • 1946-47-48 Main Wheel and Brake Details (Low Flange)

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
30-1 953472 N Wheel Assembly – Main 2 46-47-48 NM!
30-2 953474 N Wheel Sub – Assembly – Inboard Half 2 46-47-48 1083.29
30-3 952313 N Wheel Sub – Assembly – Outboard Half 2 46-47-48 241.4
30-4 13889 N Bearing Cone – Inboard and Outboard (950476) 4 46-47-48 77.98
30-5 951043 N Ring – Bearing Retaining 4 46-47-48 10.15
30-6 395-2244 Screw – RH – 6 x 32 x 1/4 8 46-47-48 NM!
30-7 952243 N Locking Terminal 8 46-47-48 0.87
30-8 952345 N Bolt 6 46-47-48 11.13
30-9 MS21044N4 Nut (AN365-428) 6 46-47-48 0.3
30-10 NAS1149F0432P Washer (AN960-416L) 6 46-47-48 0.04
30-11 13830 N Cup Bearing (950477) 4 46-47-48 31.65
30-12 9521239 1 N Brake Assembly – With Disc 2 46-47-48 NM!
30-13 39520448 N Inlet Plug 2 46-47-48 NM!
30-14 MS28778-4 Washer – Inlet (AN902-4) (955761) 4 46-47-48 0.5
30-15 395-3535 N Brake Housing Sub-Assembly 2 46-47-48 NM!
30-16 953536 N Piston 2 46-47-48 199.83
30-17 MS28775-326 N Seal – Piston (AN6227-29) 2 46-47-48 2.14
30-18 MS28775-224 N Seal – Cylinder Head (AN6230-2) 2 46-47-48 1.18
30-19 953537 N Cylinder Head 2 46-47-48 47.83
30-20 954659 Bleeder Screw #10 – 24 x 14 2 46-47-48 4.2
30-21 953102 N Lockring 2 46-47-48 7.9
30-22 9511265 N Lining – Stationary 2 46-47-48 71.5
30-23 9511264 N Lining – Movable 2 46-47-48 49.56
30-24 9523482 N Clip – Disc – Anti-Rattle 8 46-47-48 60
30-25 9530287 N Disc – 1/4” 2 46-47-48 297.64
30-26 9520657 N Screw – Drive Key 16 46-47-48 NM!
30-27 9520101 N Drive Key 16 46-47-48 74.41

1 For airplanes serial 108-82, 108-112 and up
Figure 30A • 1948 Brake Assembly For Airplanes 108-3993, 108-3995 and up

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
30A-1 9521239 N Brake Assembly – Complete 2 48 NM!
30A-2 9530287 N Disc 2 48 297.64
30A-3 9530409 N Housing – Brake Cylinder 2 48 NM!
30A-4 9520448 N Plug – Inlet 2 48 NM!
30A-5 MS28778-4 N Gasket – Inlet 4 48 0.5
30A-6 9511271 N Brake Lining (Stationary) 2 48 110.27
30A-7 9511269 N Brake Lining (Piston Side) 2 48 79.96
30A-8 9523482 N Clip – Disc 8 48 60
30A-9 955383 N Dot Fastener (see Goodyear Service Letter 9-30-59) 2 48 2.45
30A-10 9510155 N Piston 2 48 79.92
30A-12 9510731 N Cylinder Head 2 48 NM!
30A-13 395-4909 N Washer – C’ Sunk Teeth lock 12 48 NM!
30A-14 95-5163 N Screw – Unbrake Flat Head Cap 12 48 NM!
30A-15 9510957 N Washer – Bleeder 4 48 NM!
30A-16 395-5054 N Screw – Bleeder 4 48 NM!
72
