P. 82
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

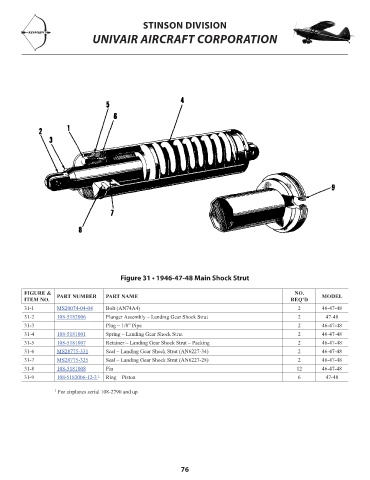

Figure 31 • 1946-47-48 Main Shock Strut
FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICE
31-1 MS20074-04-04 Bolt (AN74A4) 2 46-47-48 3.3
31-2 108-5182006 Plunger Assembly – Landing Gear Shock Strut 2 47-48 984.72
31-3 Plug – 1/8” Pipe 2 46-47-48
31-4 108-5181001 Spring – Landing Gear Shock Strut 2 46-47-48 174.17
31-5 108-5181007 Retainer – Landing Gear Shock Strut – Packing 2 46-47-48 220.03
31-6 MS28775-331 Seal – Landing Gear Shock Strut (AN6227-34) 2 46-47-48 1.04
31-7 MS28775-325 Seal – Landing Gear Shock Strut (AN6227-28) 2 46-47-48 0.8
31-8 108-5181008 Pin 12 46-47-48 17.8
31-9 108-5182006-12-3 1 Ring – Piston 6 47-48 239.14
1 For airplanes serial 108-2790 and up
76
