STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

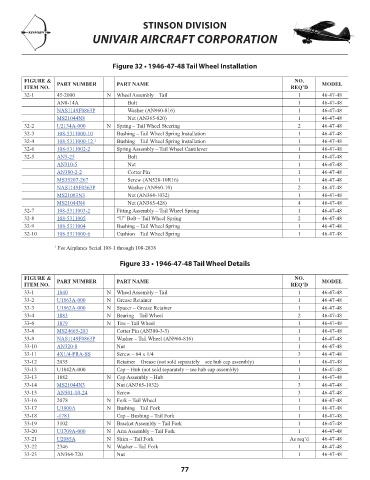

Figure 32 • 1946-47-48 Tail Wheel Installation

FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICE
32-1 45-2000 N Wheel Assembly – Tail 1 46-47-48 NM!
AN8-14A Bolt 1 46-47-48 NM!
NAS1149F0863P Washer (AN960-816) 1 46-47-48 0.1
MS21044N8 Nut (AN365-820) 1 46-47-48 0.88
32-2 U2134A-000 N Spring – Tail Wheel Steering 2 46-47-48 17.34
32-3 108-5311000-10 Bushing – Tail Wheel Spring Installation 1 46-47-48 49.39
32-4 108-5311000-12 1 Bushing – Tail Wheel Spring Installation 1 46-47-48 44.31
32-6 108-5311002-2 Spring Assembly – Tail Wheel Cantilever 1 46-47-48 303.4
32-5 AN5-25 Bolt 1 46-47-48 1.22
AN310-5 Nut 1 46-47-48 2
AN380-2-2 Cotter Pin 1 46-47-48 0.04
MS35207-267 Screw (AN520-10R16) 1 46-47-48 0.18
NAS1149F0363P Washer (AN960-10) 2 46-47-48 0.04
MS21083N3 Nut (AN364-1032) 1 46-47-48 0.22
MS21044N4 Nut (AN365-428) 4 46-47-48 0.3
32-7 108-5311003-2 Fitting Assembly – Tail Wheel Spring 1 46-47-48 331.22
32-8 108-5311005 “U” Bolt – Tail Wheel Spring 2 46-47-48 55.36
32-9 108-5311004 Bushing – Tail Wheel Spring 1 46-47-48 20.34
32-10 108-5311000-6 Cushion – Tail Wheel Spring 1 46-47-48 17.6

1 For Airplanes Serial 108-1 through 108-2838

Figure 33 • 1946-47-48 Tail Wheel Details

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
33-1 1840 N Wheel Assembly – Tail 1 46-47-48 2668.87
33-2 U1863A-000 N Grease Retainer 1 46-47-48 9.77
33-3 U1862A-000 N Spacer – Grease Retainer 1 46-47-48 11.19
33-4 1883 N Bearing – Tail Wheel 2 46-47-48 99.94
33-6 1879 N Tire – Tail Wheel 1 46-47-48 99.15
33-8 MS24665-283 Cotter Pin (AN380-3-3) 1 46-47-48 0.04
33-9 NAS1149F0863P Washer – Tail Wheel (AN960-816) 1 46-47-48 0.1
33-10 AN320-8 Nut 1 46-47-48 2.44
33-11 4X1/4-PRA-SS Screw – #4 x 1/4 3 46-47-48 0.02
33-12 2035 Retainer – Grease (not sold separately – see hub cap assembly) 1 46-47-48 NM!
33-13 U1842A-000 Cap – Hub (not sold separately – see hub cap assembly) 1 46-47-48 NM!
33-13 1882 N Cap Assembly – Hub 1 46-47-48 NM!
33-14 MS21044N3 Nut (AN365-1032) 3 46-47-48 0.24
33-15 AN501-10-24 Screw 3 46-47-48 1.5
33-16 2078 N Fork – Tail Wheel 1 46-47-48 NM!
33-17 U1800A N Bushing – Tail Fork 1 46-47-48 65.27
33-18 -1781 Cap – Bushing – Tail Fork 1 46-47-48 71.89
33-19 3102 N Bracket Assembly – Tail Fork 1 46-47-48 NM!
33-20 U1709A-000 N Arm Assembly – Tail Fork 1 46-47-48 520.97
33-21 U2085A N Shim – Tail Fork As req’d 46-47-48 4.37
33-22 2346 N Washer – Tail Fork 1 46-47-48 NM!
33-23 AN364-720 Nut 1 46-47-48 NM!

77
