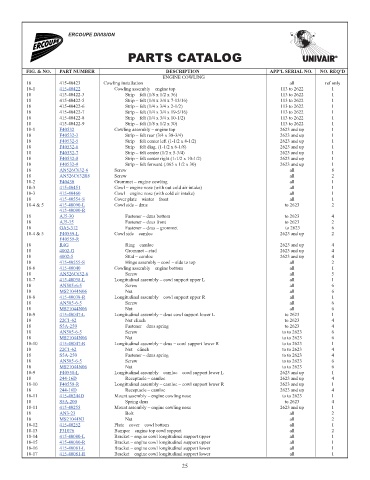

ERCOUPE DIVISION

PARTS CATALOG

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
ENGINE COWLING
18 415-40423 Cowling installation all ref only NM!
18-1 415-40422 Cowling assembly – engine top 113 to 2622 1 972.91
18 415-40422-3 Strip – felt (1/8 x 1/2 x 36) 113 to 2622 1 NM!
18 415-40422-5 Strip – felt (1/4 x 3/4 x 7-13/16) 113 to 2622 1 NM!
18 415-40422-6 Strip – felt (1/4 x 3/4 x 2-1/2) 113 to 2622 1 NM!
18 415-40422-7 Strip – felt (1/4 x 3/4 x 19-5/16) 113 to 2622 1 NM!
18 415-40422-8 Strip – felt (1/4 x 3/4 x 10-1/2) 113 to 2622 1 NM!
18 415-40422-9 Strip – felt (1/8 x 1/2 x 30) 113 to 2622 1 NM!
18-1 F40532 Cowling assembly – engine top 2623 and up 1 972.91
18 F40532-3 Strip – felt rear (3/4 x 38-3/4) 2623 and up 1 32.29
18 F40532-5 Strip – felt center left (1-1/2 x 8-1/2) 2623 and up 1 13.26
18 F40532-6 Strip – felt diag. (1-1/2 x 6-1/8) 2623 and up 1 12.97
18 F40532-7 Strip – felt center (1/2 x 5-3/4) 2623 and up 1 9.41
18 F40532-8 Strip – felt center right (1-1/2 x 10-1/2) 2623 and up 1 7.74
18 F40532-9 Strip – felt forward (.065 x 1/2 x 30) 2623 and up 1 25.3
18 AN526C632-6 Screw all 8 0.23
18 AN526C632R8 Screw all 2 0.18
18-2 F40430 Grommet – engine cowling all 1 26.21
18-3 415-40451 Cowl – engine nose (with out cold air intake) all 1 1479.75
18-3 415-40460 Cowl – engine nose (with cold air intake) all 1 1566.09
18 415-40554-S Cover plate – winter – front all 1 151.51
18-4 & 5 415-40090-L Cowl side – dzus to 2623 2 1182.03
415-40090-R
18 AJ5-30 Fastener – dzus bottom to 2623 4 3.85
18 AJ5-35 Fastener – dzus front to 2623 2 5.01
18 GA5-312 Fastener – dzus – grommet to 2623 6 3.43
18-4 & 5 F40559-L Cowl side – camloc 2623 and up 2 908.01
F40559-R
18 R4G Ring – camloc 2623 and up 4 0.41
18 4002-G Grommet – stud 2623 and up 4 2.33
18 4002-5 Stud – camloc 2623 and up 4 6.04
18 415-40555-S Hinge assembly – cowl – side to top all 2 NM!
18-6 415-40040 Cowling assembly – engine bottom all 1 1049
18 AN526C632-6 Screw all 5 0.23
18-7 415-40038-L Longitudinal assembly – cowl support upper L all 1 274.37
18 AN505-6-5 Screw all 6 0.14
18 MS21044N06 Nut all 6 0.32
18-8 415-40038-R Longitudinal assembly – cowl support upper R all 1 274.37
18 AN505-6-5 Screw all 6 0.14
18 MS21044N06 Nut all 6 0.32
18-9 415-40047-L Longitudinal assembly – dzus cowl support lower L to 2623 1 221.51
18 22C1-62 Nut clinch to 2623 4 0.05
18 S5A-250 Fastener – dzus spring to 2623 4 2.31
18 AN505-6-5 Screw to to 2623 6 0.14
18 MS21044N06 Nut to to 2623 6 0.32
18-10 415-40047-R Longitudinal assembly – dzus – cowl support lower R to to 2623 1 221.51
18 22C1-62 Nut – clinch to to 2623 4 0.05
18 S5A-250 Fastener – dzus spring to to 2623 4 2.31
18 AN505-6-5 Screw to to 2623 6 0.14
18 MS21044N06 Nut to to 2623 6 0.32
18-9 F40558-L Longitudinal assembly – camloc – cowl support lower L 2623 and up 1 221.69
18 244-16D Receptacle – camloc 2623 and up 4 5.43
18-10 F40558-R Longitudinal assembly – camloc – cowl support lower R 2623 and up 1 221.69
18 244-16D Receptacle – camloc 2623 and up 4 5.43
18-11 415-40244D Mount assembly – engine cowling nose to to 2623 1 1127.99
18 S5A-200 Spring dzus to 2623 4 2.13
18-11 415-40255 Mount assembly – engine cowling nose 2623 and up 1 738.06
18 AN3-23 Bolt all 2 2.24
18 MS21044N3 Nut all 2 0.24
18-12 415-40252 Plate – cover – cowl bottom all 1 103.26
18-13 F31076 Bumper – engine top cowl support all 2 7.21
18-14 415-40080-L Bracket – engine cowl longitudinal support upper all 1 95.91
18-15 415-40080-R Bracket – engine cowl longitudinal support upper all 1 95.91
18-16 415-40081-L Bracket – engine cowl longitudinal support lower all 1 49.32
18-17 415-40081-R Bracket – engine cowl longitudinal support lower all 1 49.32
25
