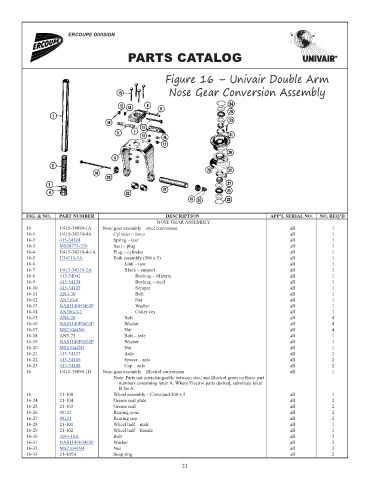

Figure 16 – Univair Double Arm
Nose Gear Conversion Assembly

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
NOSE GEAR ASSEMBLY
16 U415-34090-1A Nose gear assembly – steel conversion all 1 NM!
16-1 U415-34310-4A Cylinder – inner all 1 NM!
16-2 415-34104 Spring – taxi all 1 28.94
16-3 MS28775-220 Seal – plug all 1 0.78
16-4 U415-34310-4-1A Plug – cylinder all 1 NM!
16-5 U34310-1A Fork assembly (500 x 5) all 1 527.71
16-6 Link – tow all 1
16-7 U415-34310-2A Block – support all 1 147.15
16-8 415-34042 Bushing – Micarta all 1 51.74
16-9 415-34134 Bushing – steel all 1 72.49
16-10 415-34105 Scraper all 1 21.96
16-11 AN4-30 Bolt all 1 1.35
16-12 AN310-4 Nut all 1 1.6
16-13 NAS1149F0463P Washer all 1 0.06
16-14 AN380-2-2 Cotter key all 1 0.04
16-15 AN6-20 Bolt all 4 1.19
16-16 NAS1149F0663P Washer all 4 0.11
16-17 MS21044N6 Nut all 4 0.58
16-18 AN5-73 Bolt – axle all 1 NM!
16-19 NAS1149F0563P Washer all 1 0.08
16-20 MS21044N5 Nut all 1 0.4
16-21 415-34107 Axle all 1 71.97
16-22 415-34106 Spacer – axle all 2 74.44
16-23 415-34108 Cap – axle all 2 51.59
16 U415-34090-1B Nose gear assembly – Electrol conversion all 1 NM!
Note: Parts not interchangeable between steel and Electrol gears on those part
numbers containing letter A. Where Electrol parts desired, substitute letter
B for A.
16 21-100 Wheel assembly – Cleveland 500 x 5 all 1 NM!
16-24 21-104 Grease seal plate all 2 NM!
16-25 21-103 Grease seal all 2 NM!
16-26 08125 Bearing cone all 2 49.98
16-27 08231 Bearing cup all 2 31.18
16-28 21-101 Wheel half – male all 1 NM!
16-29 21-102 Wheel half – female all 1 NM!
16-30 AN4-10A Bolt all 3 0.26
16-31 NAS1149F0463P Washer all 3 0.06
16-32 MS21044N4 Nut all 3 0.3
16-33 21-105A Snap ring all 2 NM!
