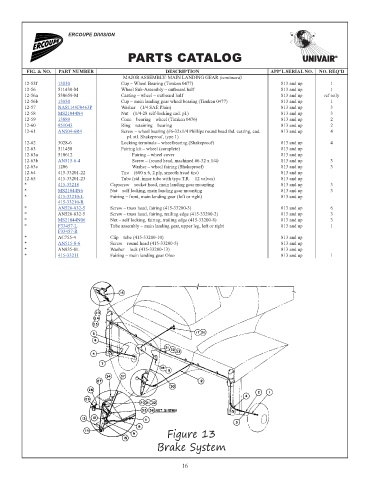

Page 21 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
MAJOR ASSEMBLY: MAIN LANDING GEAR (continued)
12-55f 13830 Cup – Wheel Bearing (Timken 0477) 813 and up 1 31.65
12-56 511430-M Wheel Sub-Assembly – outboard half 813 and up 1 NM!
12-56a 530659-M Casting – wheel – outboard half 813 and up ref only NM!
12-56b 13830 Cup – main landing gear wheel bearing (Timken 0477) 813 and up 1 31.65
12-57 NAS1149F0463P Washer – (1/4 SAE Plain) 813 and up 3 0.06
12-58 MS21044N4 Nut – (1/4-28 self-locking cad. pl.) 813 and up 3 0.3
12-59 13889 Cone – bearing – wheel (Timken 0476) 813 and up 2 77.98
12-60 951043 Ring – retaining – bearing 813 and up 2 10.15
12-61 AN504-6R4 Screw – wheel bearing (#6-32x1/4 Phillips round head thd. cutting, cad. 813 and up 4
pl. stl. Shakeproof, type 1)
12-62 3028-6 Locking terminals – wheelbearing (Shakeproof) 813 and up 4 NM!
12-63 511458 Fairing kit – wheel (complete) 813 and up NM!
12-63a 510612 Fairing – wheel cover 813 and up NM!
12-63b AN515-6-4 Screw – (round head, machined #6-32 x 1/4) 813 and up 3 0.03
12-63c 1206 Washer – wheel fairing (Shakeproof) 813 and up 3 NM!
12-64 415-33201-22 Tire – (600 x 6, 2 ply, smooth tread tire) 813 and up NM!
12-65 415-33201-23 Tube (std. inner tube with type T.R. – 12 valves) 813 and up NM!
* 415-33218 Capscrew – socket head, main landing gear mounting 813 and up 3 12.06
* MS21044N6 Nut – self locking, main landing gear mounting 813 and up 3 0.58
* 415-33210-L Fairing – front, main landing gear (left or right) 813 and up 181.94
415-33210-R
* AN526-832-5 Screw – truss head, fairing (415-33200-3) 813 and up 6 0.07
* AN526-632-5 Screw – truss head, fairing, trailing edge (415-33200-2) 813 and up 3 NM!
* MS21044N06 Nut – self locking, fairing, trailing edge (415-33200-8) 813 and up 3 0.32
* F33457-L Tube assembly – main landing gear, upper leg, left or right 813 and up 1 24.78
F33457-R
* AC755-4 Clip – tube (415-33200-10) 813 and up NM!
* AN515-8-6 Screw – round head (415-33200-5) 813 and up 0.15
* AN935-8L Washer – lock (415-33200-13) 813 and up NM!
* 415-33211 Fairing – main landing gear Oleo 813 and up 1 125.1

Figure 13
Brake System

16
