ERCOUPE DIVISION

PARTS CATALOG

BUSHING NAS75-5-008 PLAIN WASHER NAS1149F0563P PLAIN WASHER NAS1149F0463P SHEAR NUT AN320-4 SELF-LOCKING NUT MS21044N6 FAIRING ASSEM. 415-34302 ATTACHING SCREWS AN526-1032-20 ALUM. WASHERS NAS1149F0332P COTTER PINS MS24665-134

SOCKET BALL FITTING F34074-2 BUMPER F34309 RD. HD. MACH. SCREWS MS35206-235 CASTLE NUT AN310-5 PLAIN WASHER NAS1149F0563P SCISSOR ASSEM. F34318 SHEAR NUT AN320-4 PLAIN WASHER NAS1149F0463P BUSHING F34339

COLLAR (STEERING) 415-34321 OUTER CYL. & BRG. ASSEM. 415-34340 BOLT AN5-26 BEARING (UPPER SLEEVE) 415-34327 SCISSOR ASSEM. F34318 COLLAR (STRUT ATTACHING) 415-34329 BOLT AN5-11 BEARING (LWR. SLEEVE) 415-34326 SLEEVE (STEERING) SK-17G LUB. FITTING BOLT AN5-26 BEARING (INNER LOWER) 415-34315 “O” RING PACKING 415-34348-3 PLAIN WASHER NAS1149F0563P

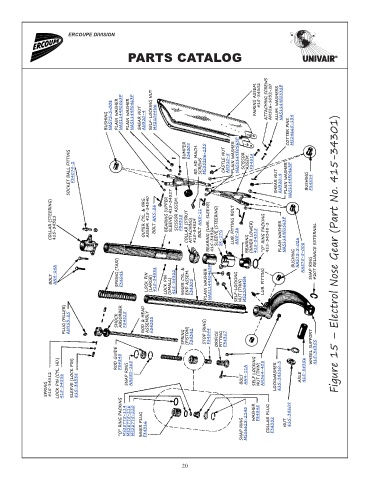

BOLT AN4-14A SPRING (TAXI) F34041 LOCK PIN (LARGE) 415-34338 LOCK PIN (SMALL) 415-34322 INNER CYL. & END ASSEM. F34305 PLAIN WASHER NAS1149F0463P SELF-LOCKING NUT (THIN) MS21044N4 LUB. FITTING BUSHING NAS75-5-026 NAS75-5-008 SNAP RING #207 RELIANCE EXTERNAL Figure 15 – Electrol Nose Gear (Part No. 415-34301)

PLUG (FILLER) AN913-25 SHOCK ABSORBER F34325 ROD & HEAD ASSEMBLY F34333

SPRING (PISTON) F34342 STOP (RING) F34344 ORIFICE FITTING F34317 WHEEL SUPPORT 415-34355

ROD GUIDE
F34343

SPRING 415-34312 LOCK PIN (CYL. HD.) 415-34336 SLEEVE (LOCK PIN) 415-34334 SNAP RING NAS50-165 BOLT AN4-11A SELF LOCKING NUT (THIN) AN364-428 LOCKWASHER 415-34110-3 AXLE 415-34356

“O” RING PACKING MS28775-114 MS28775-216 MS28775-220 INNER PLUG F34316 SNAP RING MS16625-2143 WASHER F34345 COLLAR PLUG F34332 NUT 415-34109

20
